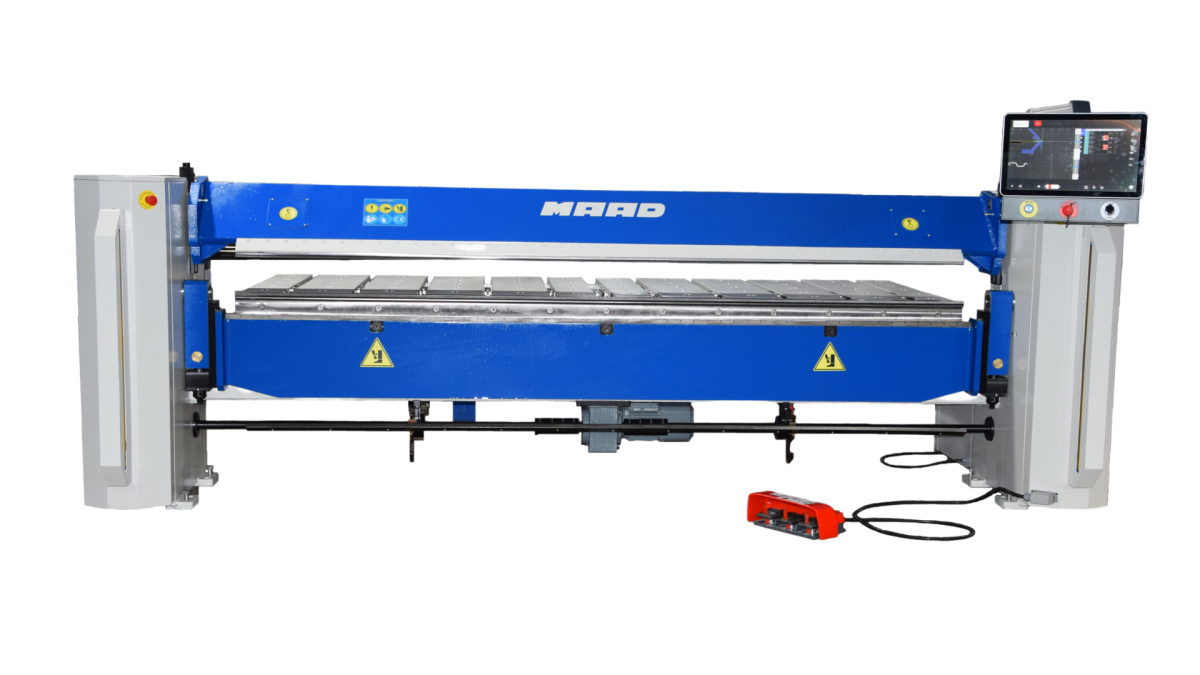

CNC automatic bending machine - TBC 3215
The TBC 3215 numerically controlled bending machine is a new product in our offer. It is an advanced device that allows precise forming of metal sheets into various shapes. Thanks to the use of computer numerical control (CNC) technology, the bending machine ensures high accuracy and repeatability of bending processes, which is crucial in the production of elements with complex shapes.
| Max. sheet length: | 3200 mm |
| Max. steel sheet thickness: | 1.5 mm |
| Max. thickness of galvanized sheet: | 0.8 mm |
| Max. thickness of aluminum sheet: | 2.0 mm |
| Machine dimensions: | 2000 x 4400 x 1800 mm |
| Machine weight: | 3750 kg |
Technical parameters:
|
Pressure beam (Z axis) |
|
|
Maximum opening (without tools) |
160 mm |
|
Motor power (AC motor) |
1.1 kW |
|
Feed speed |
80 mm/sec |
|
Bending beam (Y axis) |
|
|
Bending angle |
0 - 150° |
|
Motor power (Sew Eurodrive AC) |
2.2 kW |
|
Bending speed |
90°/sec |
|
Adjusting the height of the bending beam (axes A1-A2) |
|
|
Adjustment value |
0 / -80 mm |
|
Service |
Manualna |
|
Stop bumper (X axis) |
|
|
Feed speed |
250 mm/sec |
|
Motor power (Servo) |
400 W |
|
Positioning accuracy |
+/- 0,1 mm |
