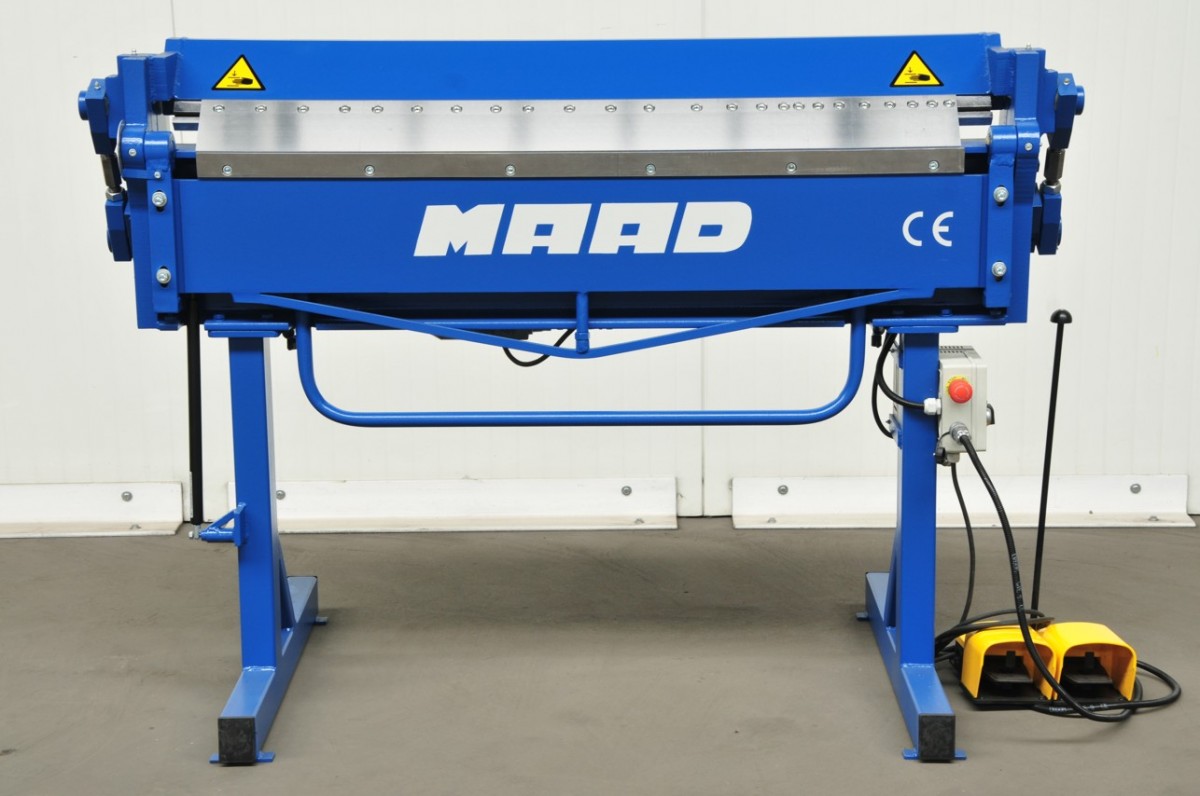

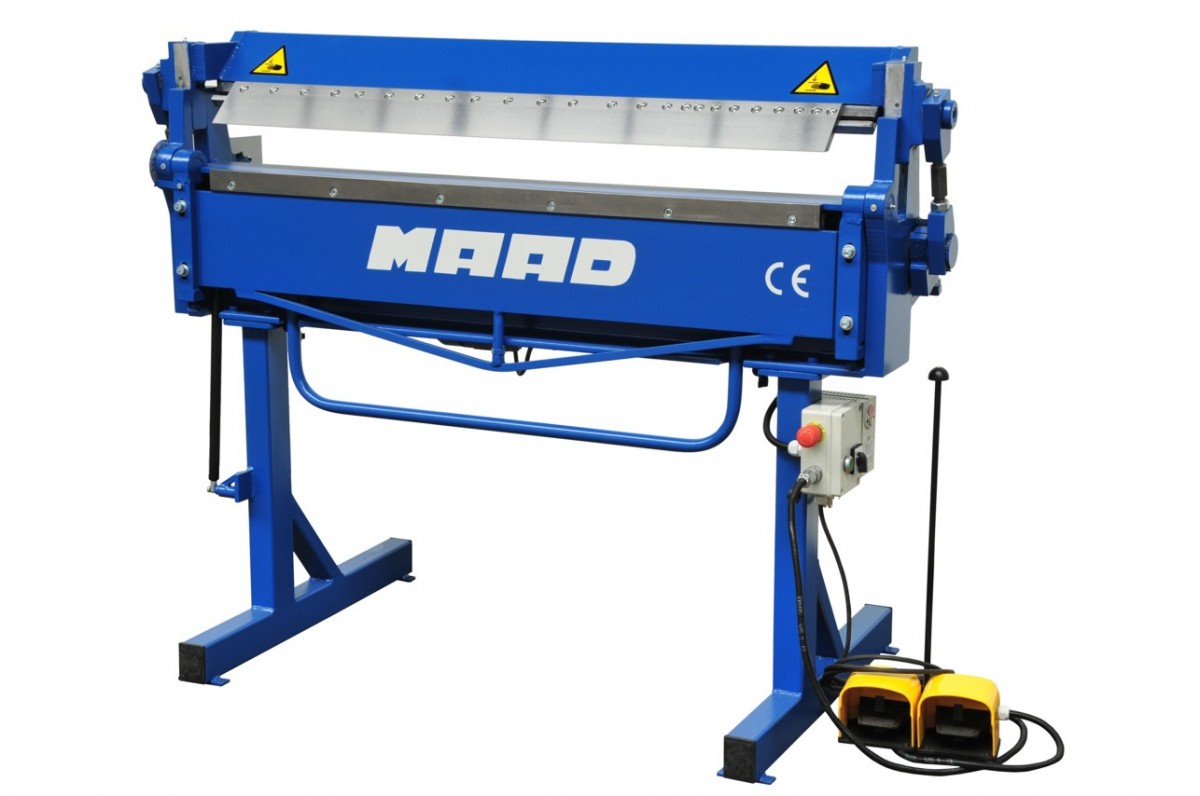

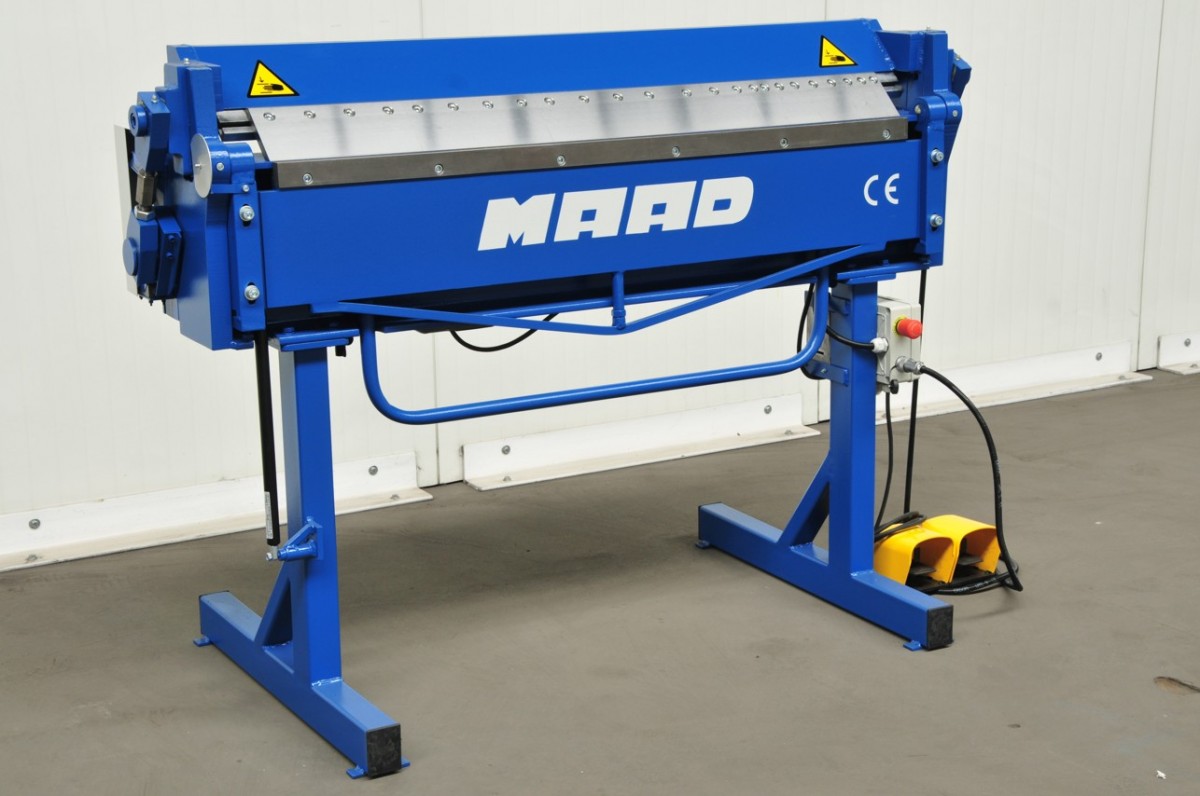

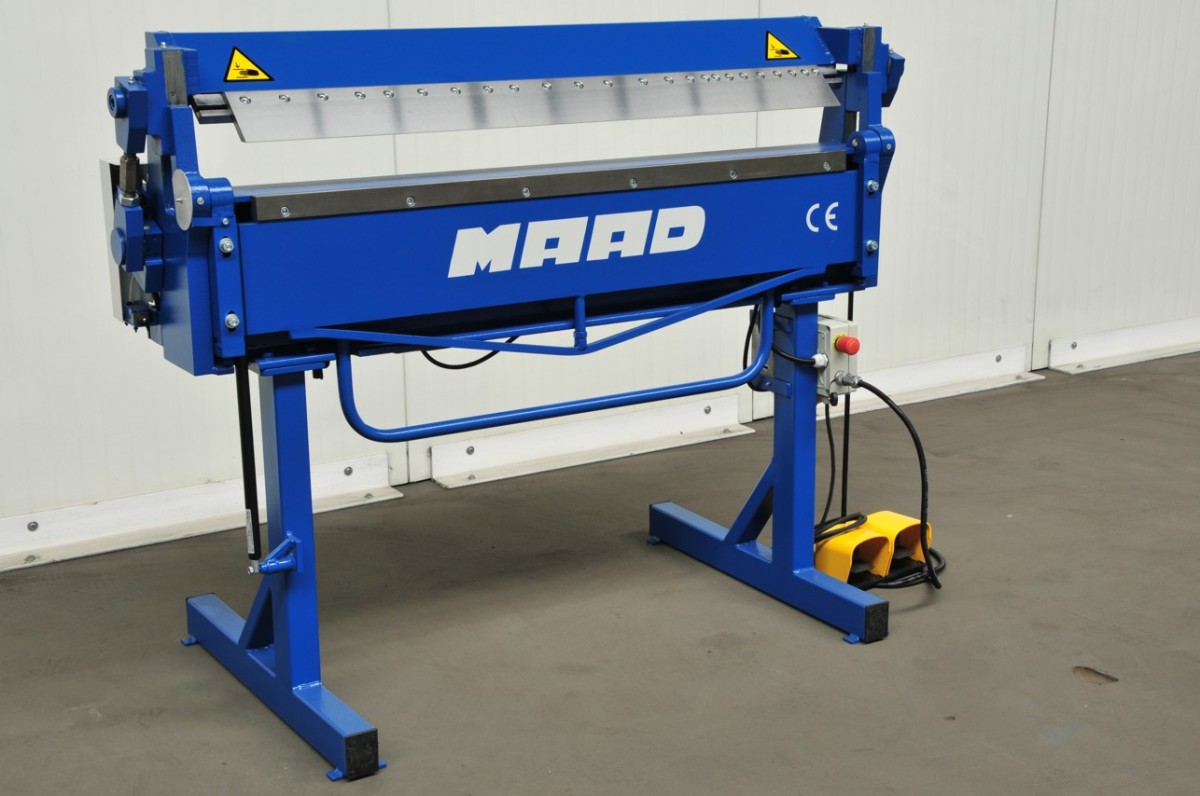

HSE-1270/2.0 with top beam drive
Work width:
1270 mm
Max. thickness of the sheet:
2.0 mm for Rm < 400 MPa

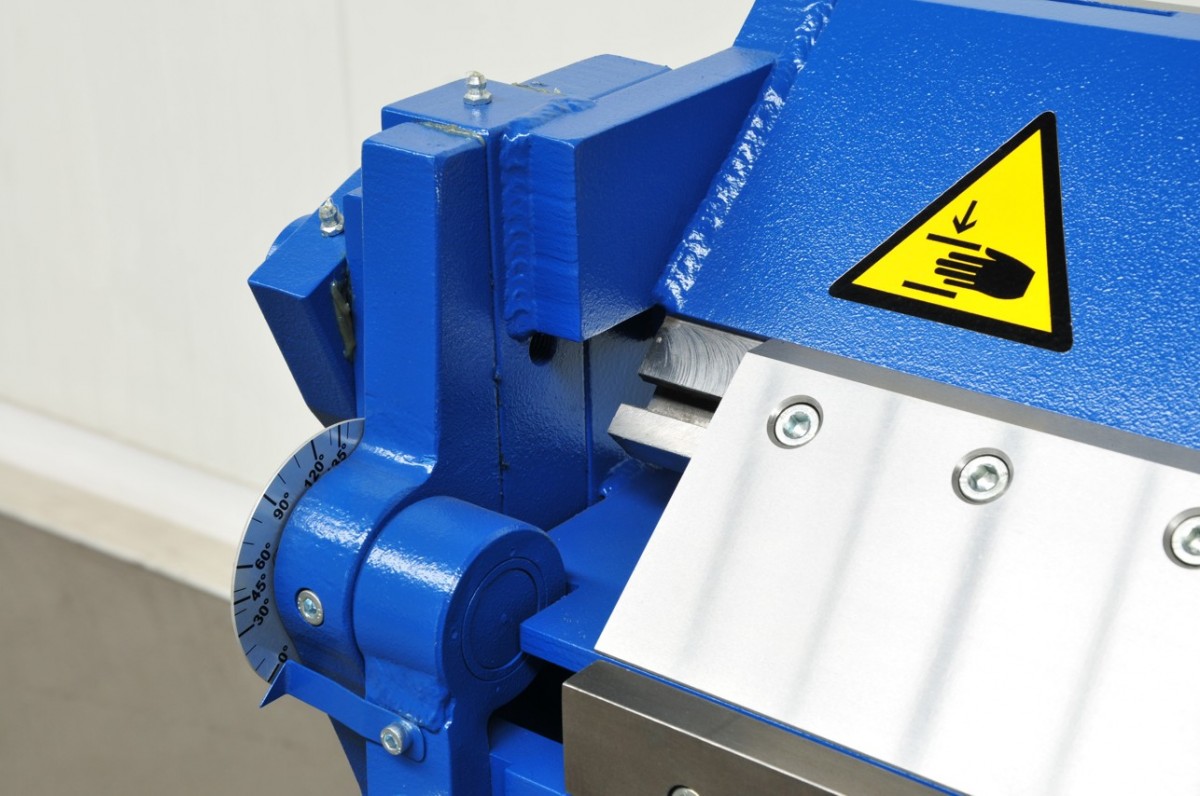

Max. bend angle: 135°
Bending beam width: 20 mm
Weight: 430 kg

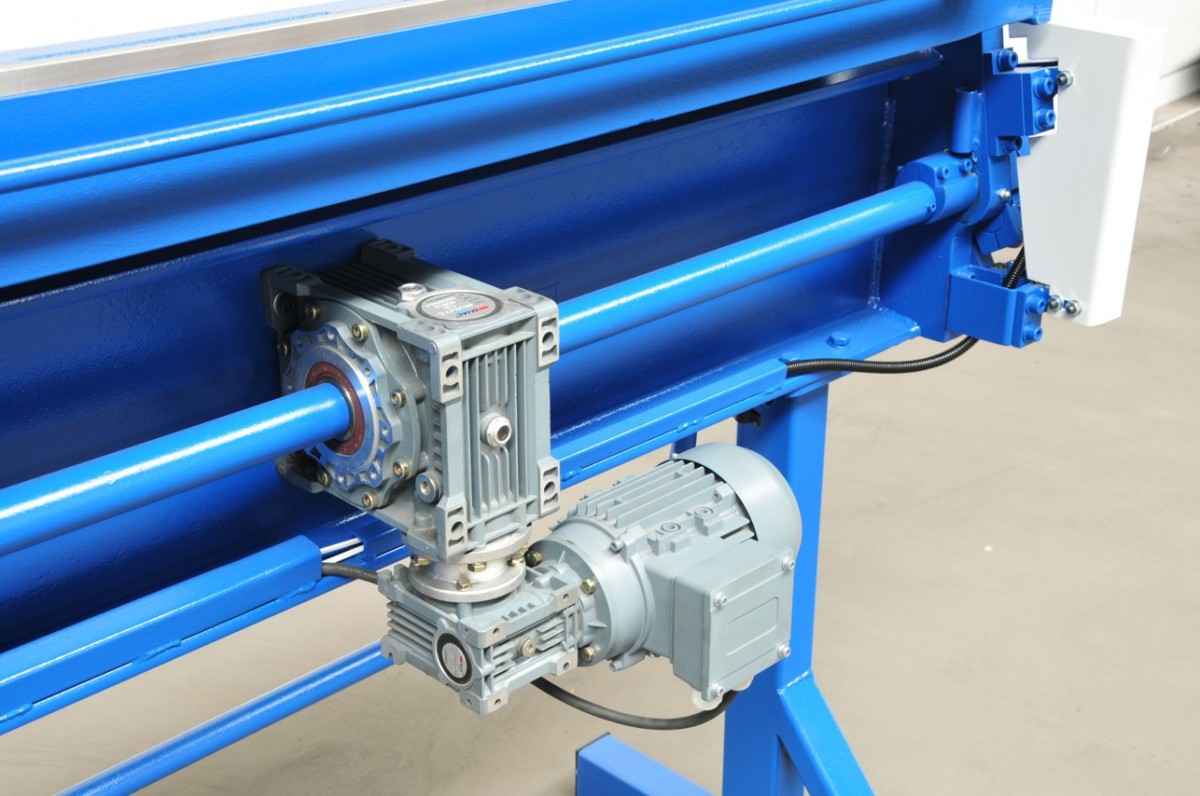

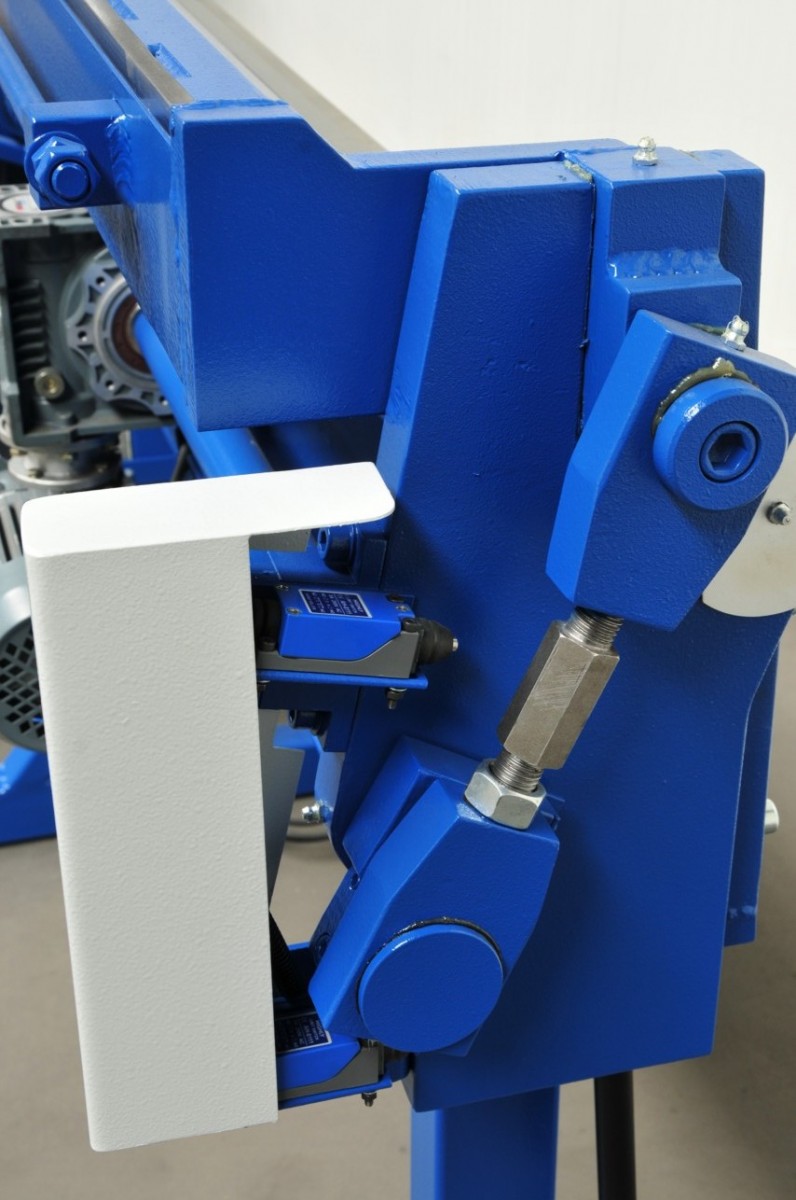

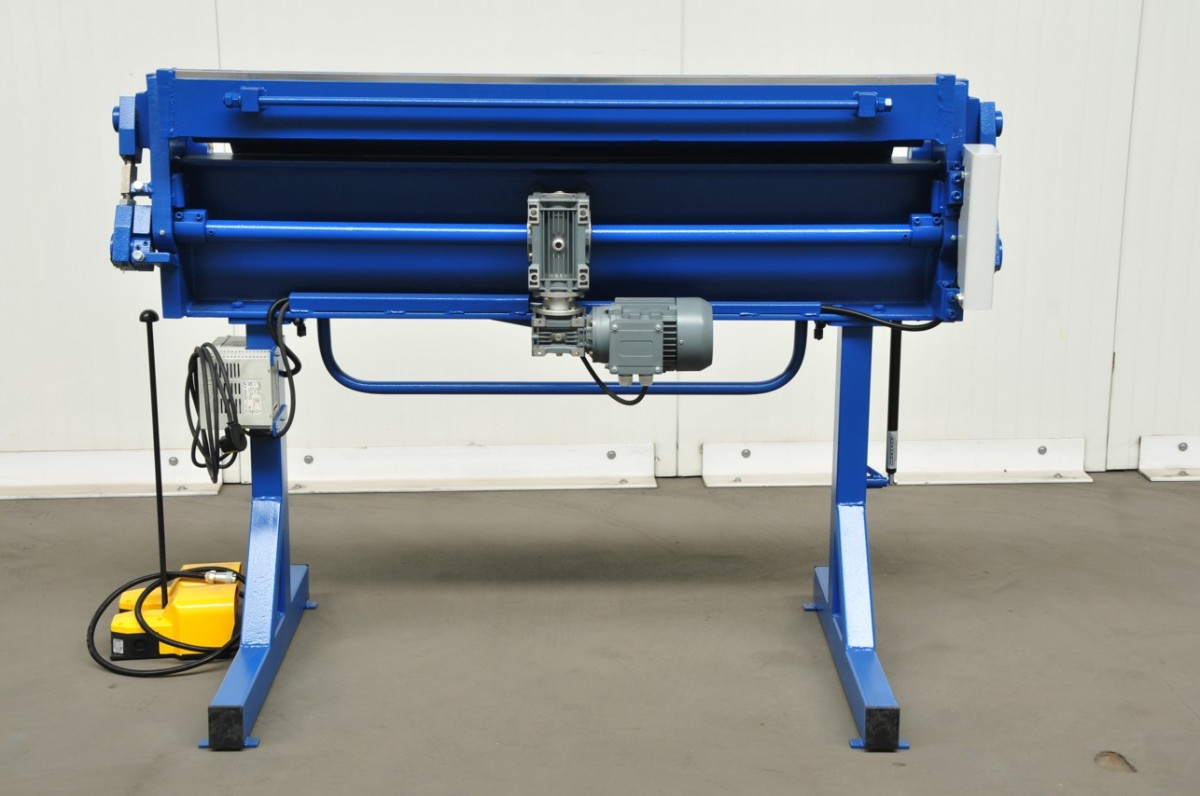

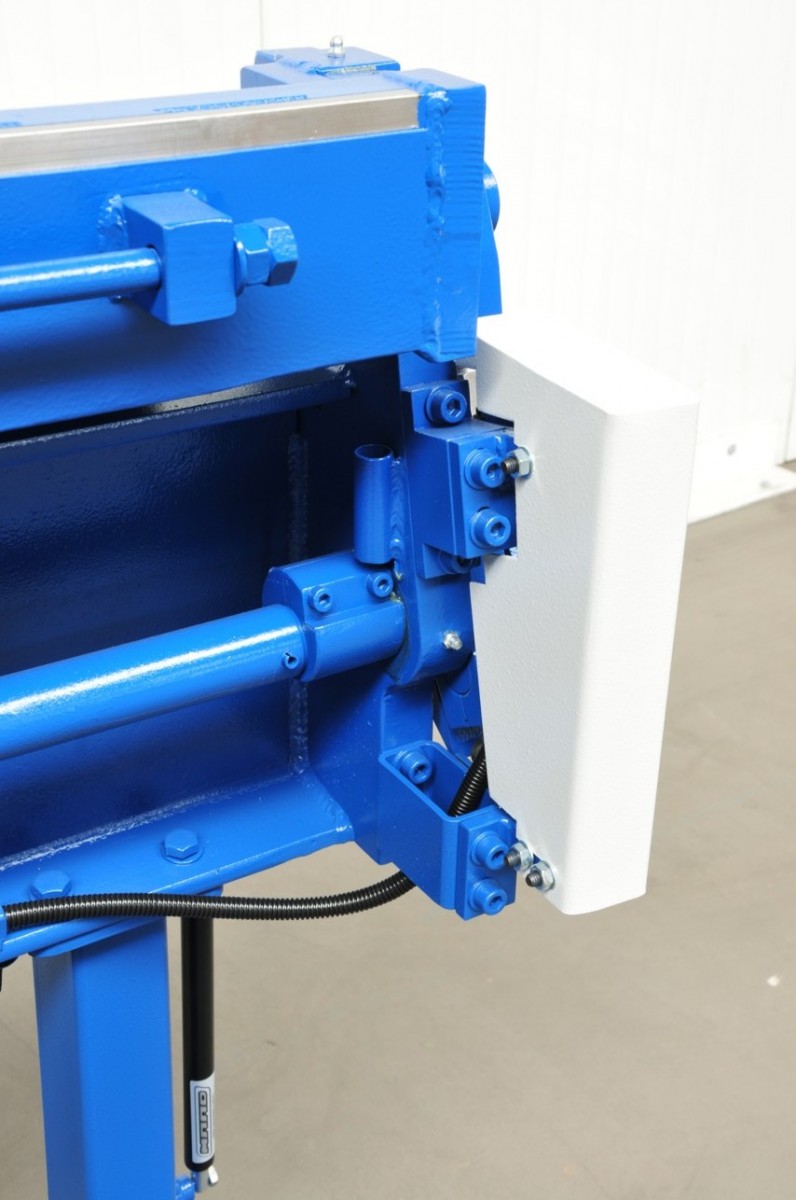

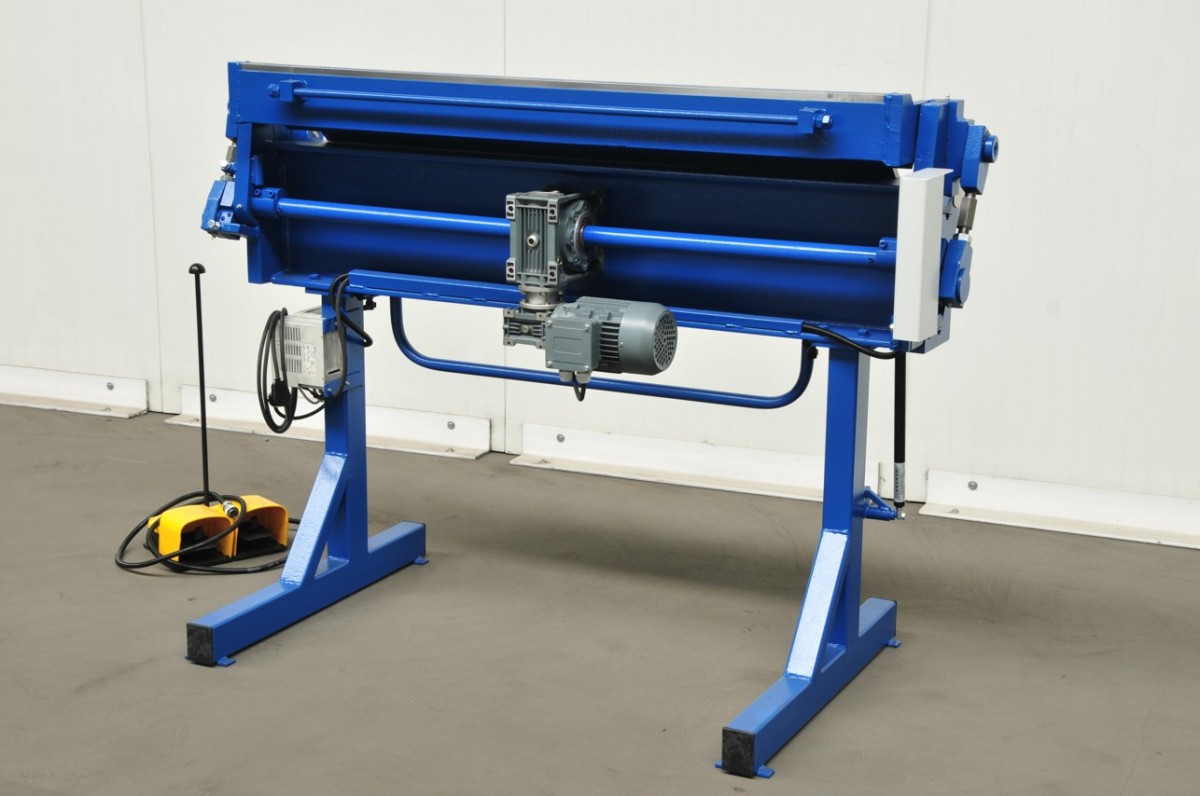

INNOVATIVE top press beam drive system.

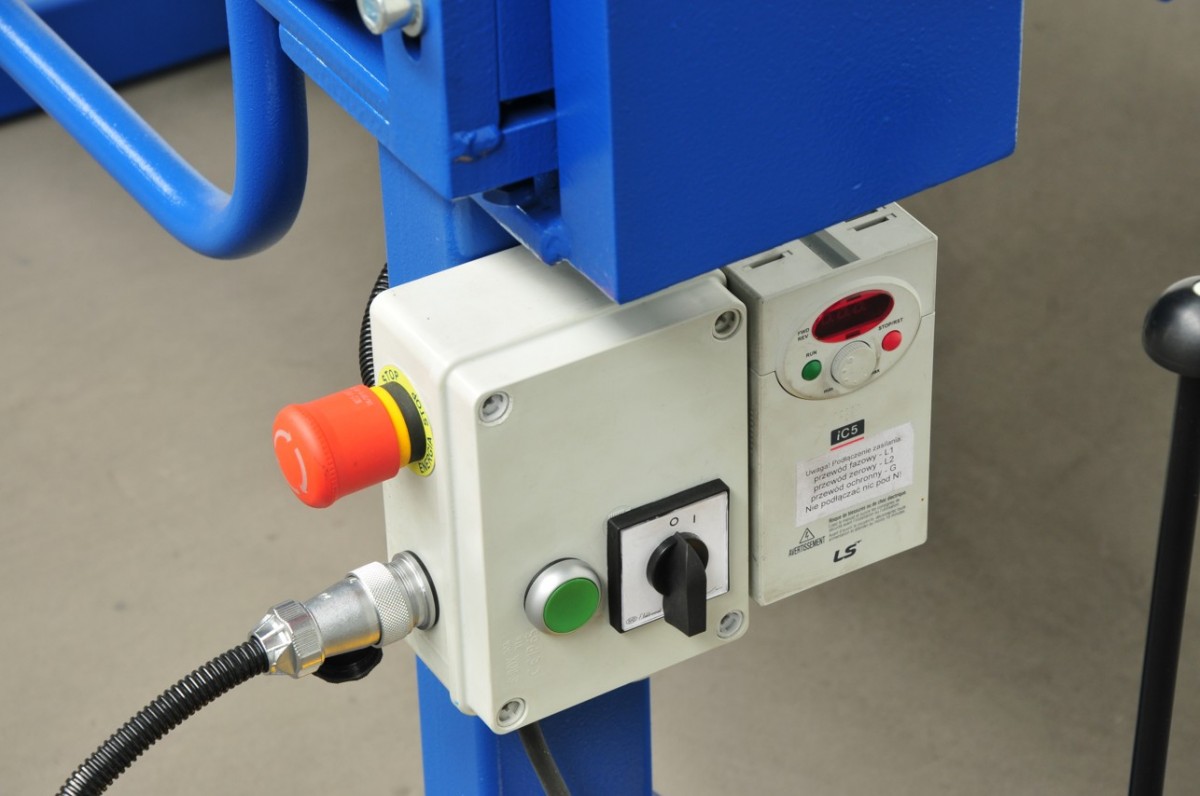

- Semi-automatic control of the press bar by two foot switches,
- top beam speed control,
- CE certified,
- faster work for single operator,
- greater precision in workpiece positioning thanks to hands-free operation,
- higher productivity,
- Improved ergonomics.

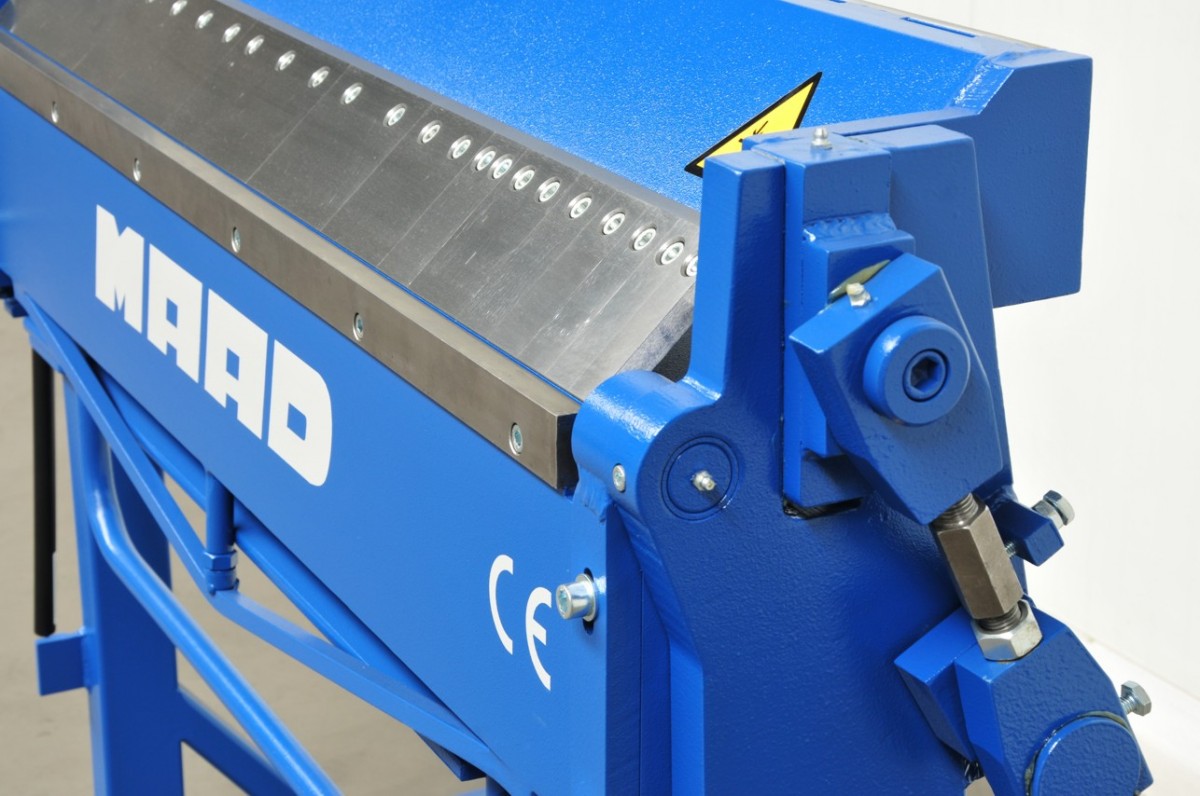

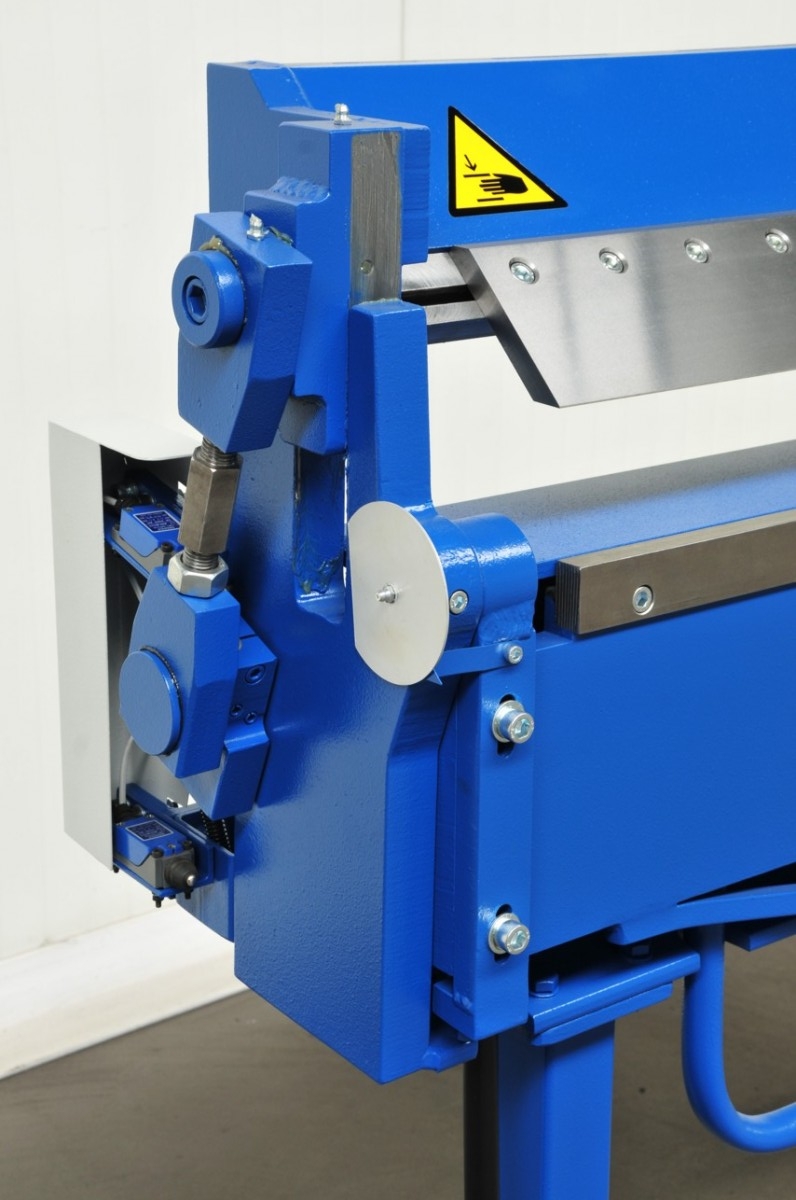

The HSE-1270/2.0 segment bending machine is based on a proven design of the bending elements. Its functional design provides for ease of operation and a wide range of practical applications. The clamping bar is equipped with 12 segmented knives of the following dimensions:
25/30/35/ 40/45/50/75/100/150/200/250/270 [mm].
The maximum clearance between the pressure bar and the base of the bending machine is 90 mm.
The blades are made of quality steel allowing for long term operation of the machine while maintaining proper bending parameters.
The maximum height of the bending "box" on the machine is 30 mm.
