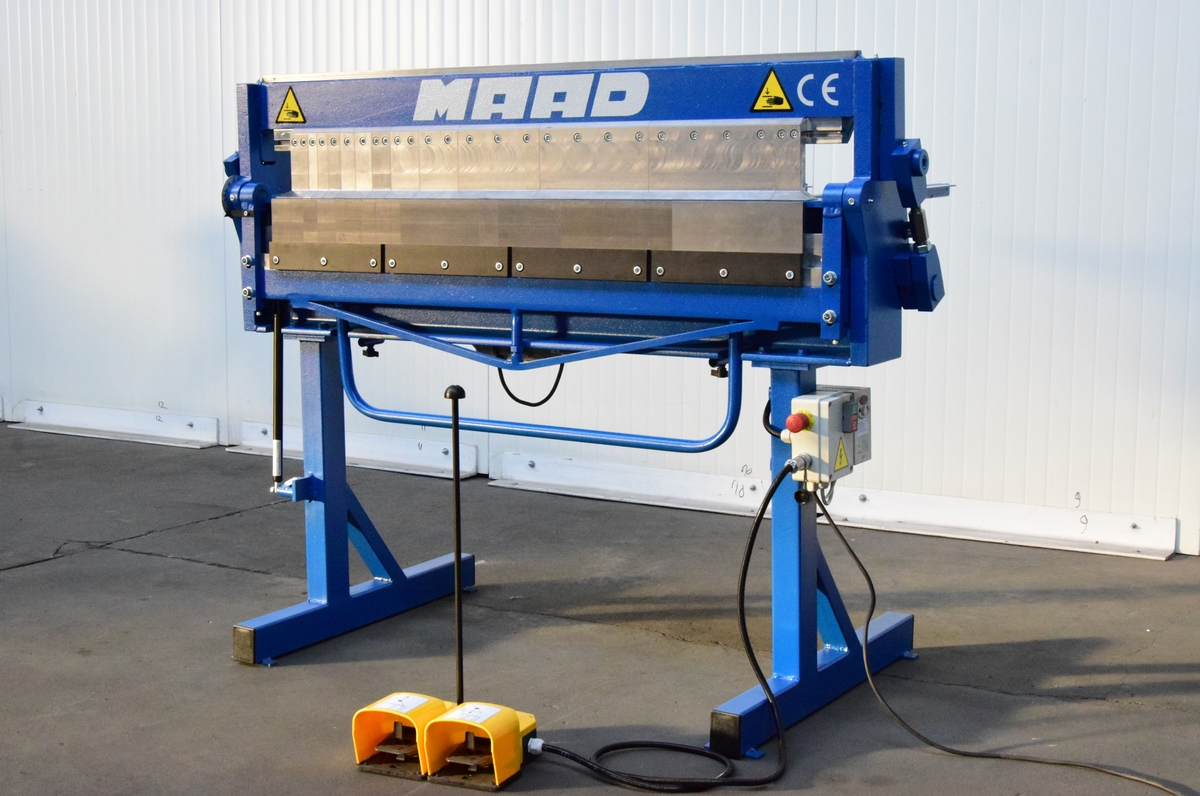

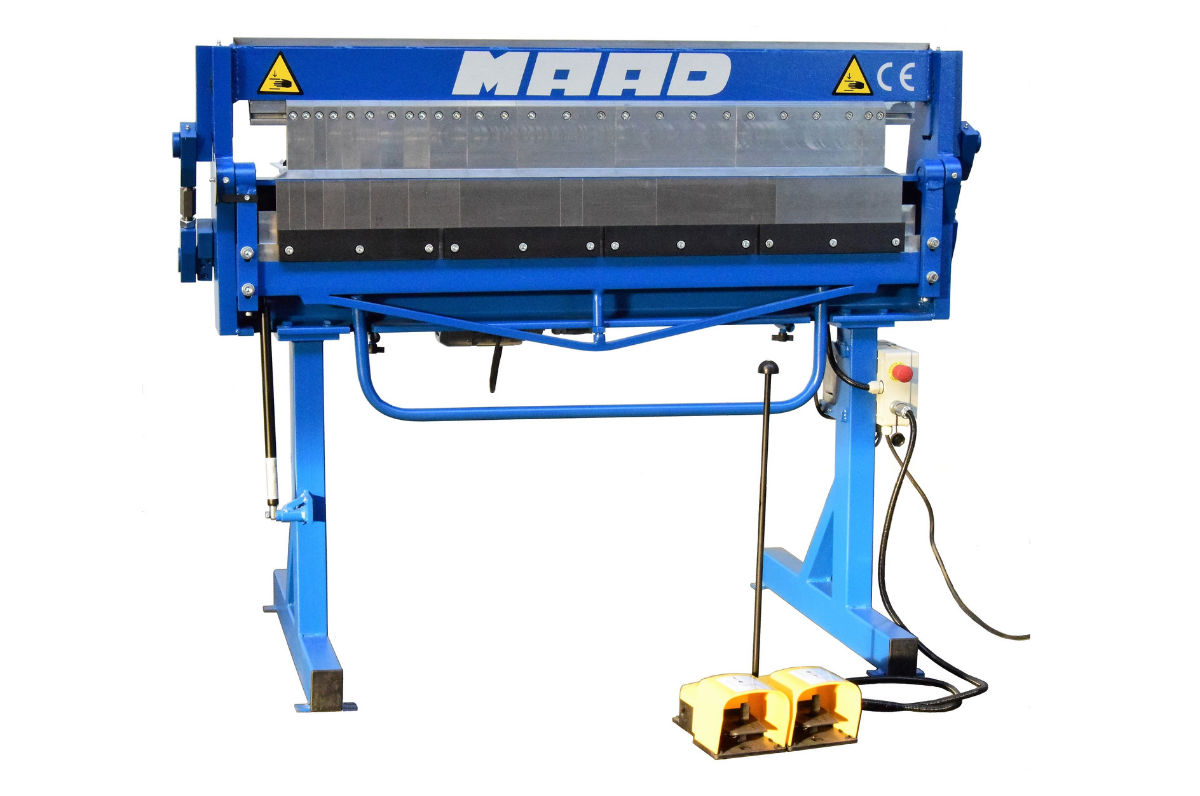

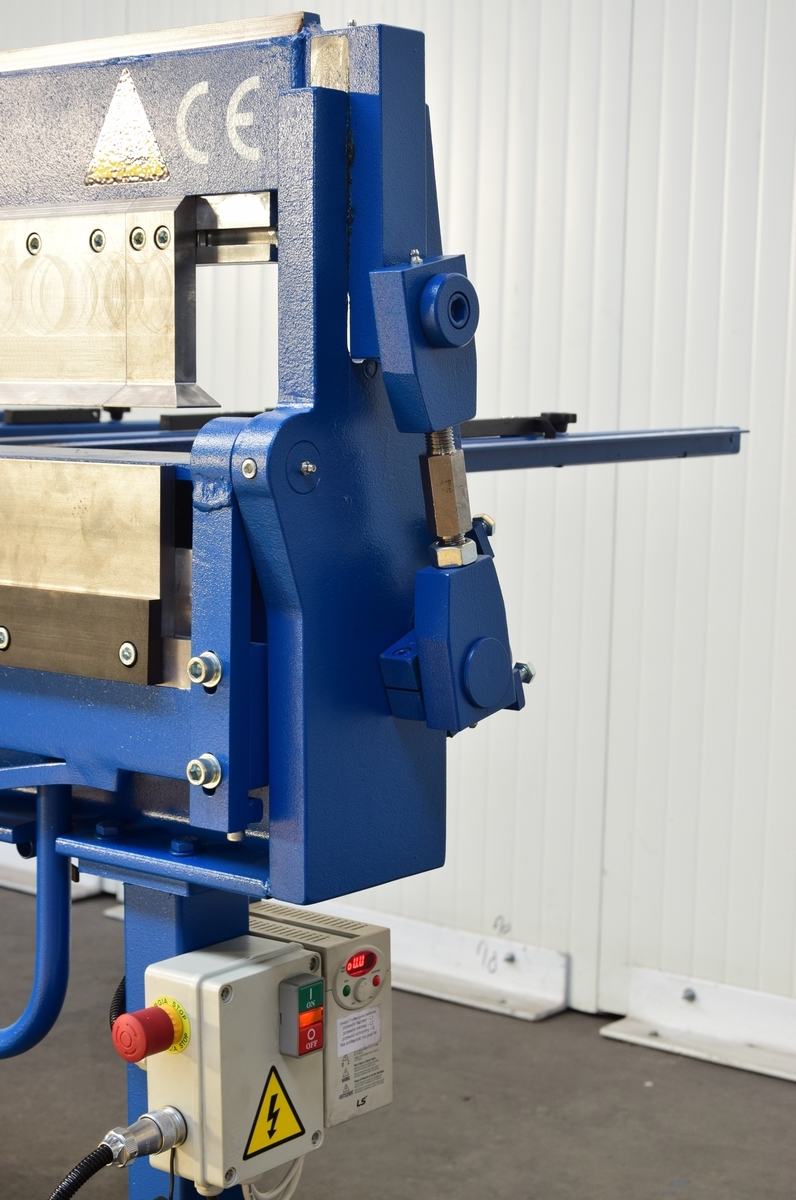

HSSE-1270/1.2 Bending machine with top beam drive
Work width:
1270 mm
Max. thickness of the sheet:
1.2 mm for Rm < 400 MPa
Max. bend angle: 155°
Bending beam width: 15 mm
Weight: 350 kg
INNOVATIVE top press beam drive system.

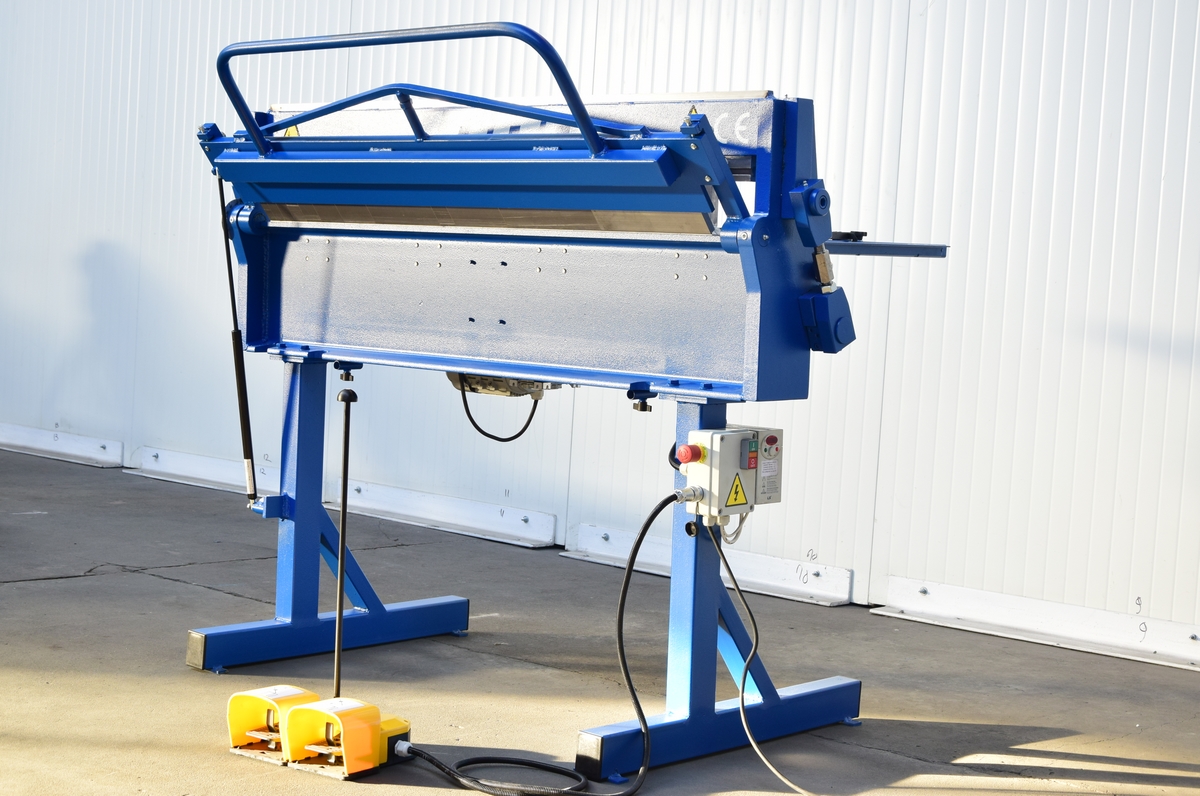

- Semi-automatic control of the press bar by two foot switches,
- top beam speed control,
- CE certified,
- faster work for single operator,
- greater precision in workpiece positioning thanks to hands-free operation,
- higher productivity,
- Improved ergonomics.
The bending machine is used especially for fabrication of flashings such as: chimneys, drip eaves, firewall flashings, and many others. The functional design ensures high operating comfort and a wide range of practical applications.

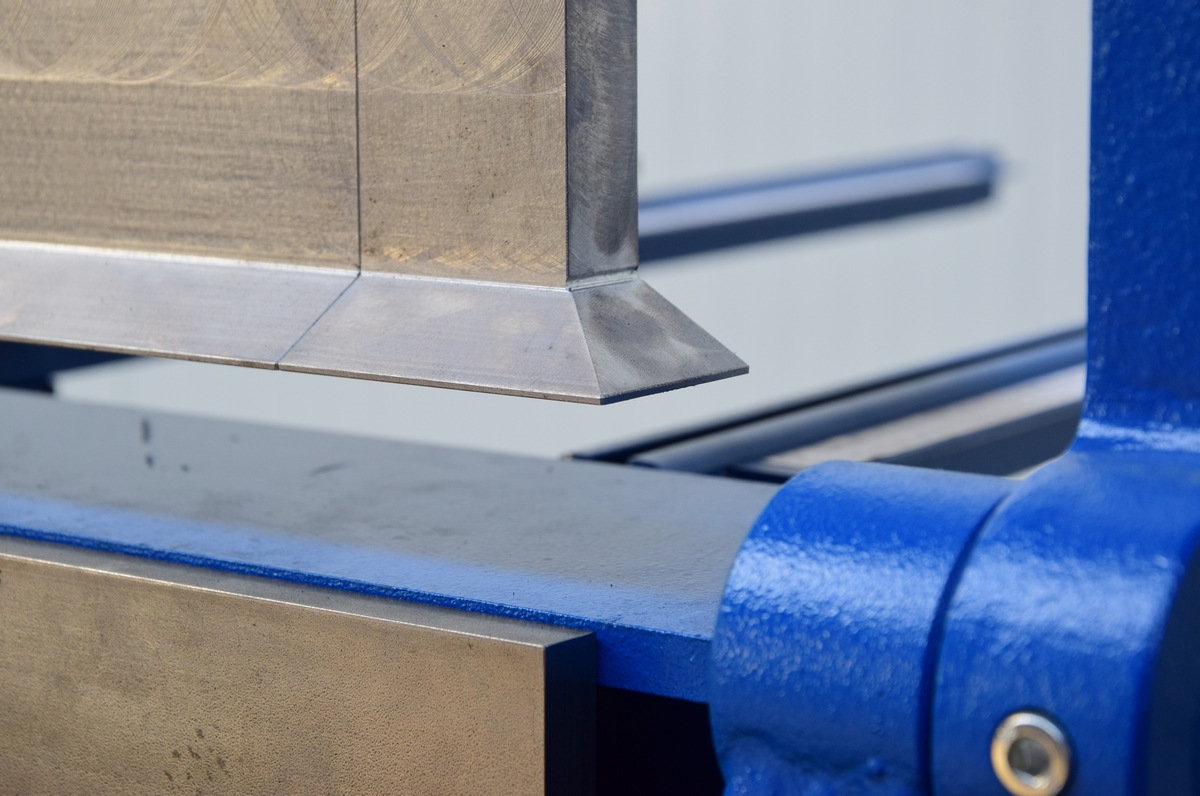

Upper and lower beams are equipped with segmented knives of dimensions 25/30/35/40/45/50/75/100/150/ 200/250/270 mm. The knives are made of quality steel allowing for long-term operation of the bending machine while maintaining appropriate bending parameters. The clearance height between the machine base and the upper knives is as much as 102 mm, the maximum bending angle is 155 degrees and the width of the bending beam is only 15 mm, which translates into very large possibilities for sheet metal work.
Sturdy and solid construction (machine weight 350 kg) ensures failure-free bending of steel sheets up to 1.2 mm thickness.

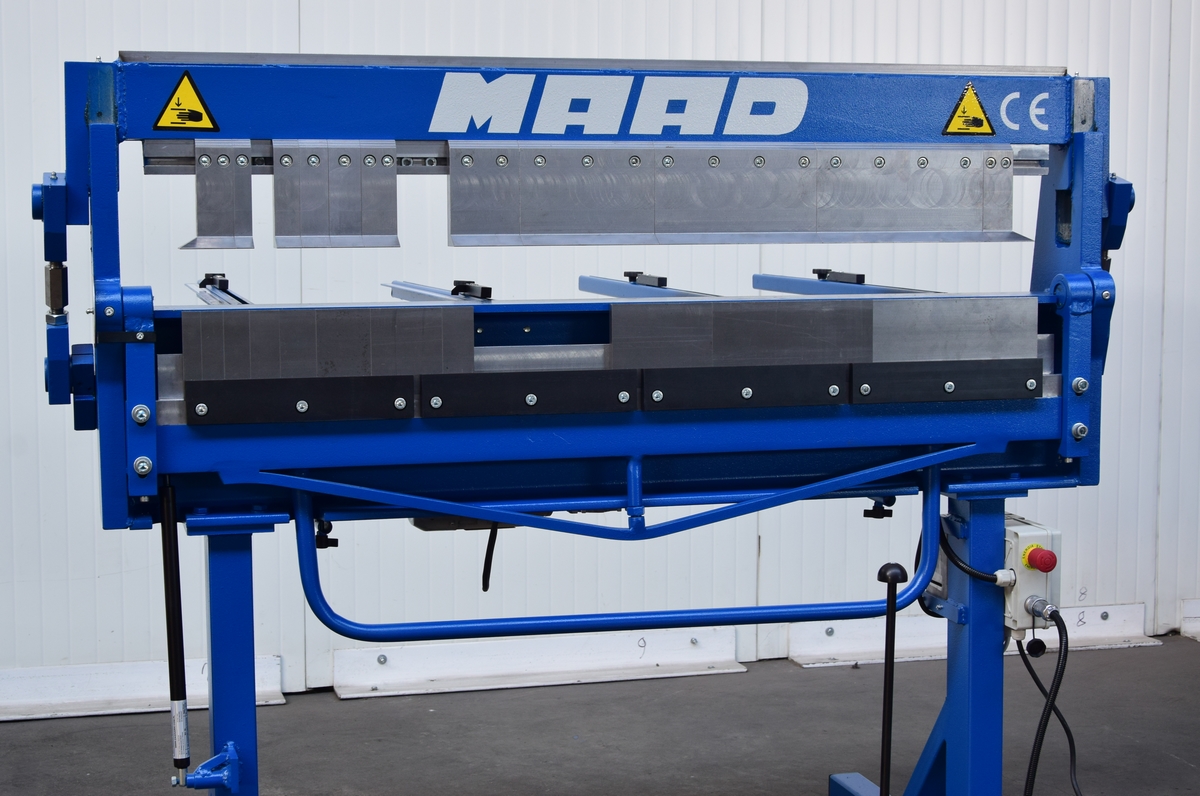

The main working elements of the bending machine are 3 working beams: fixed, clamping and bending.

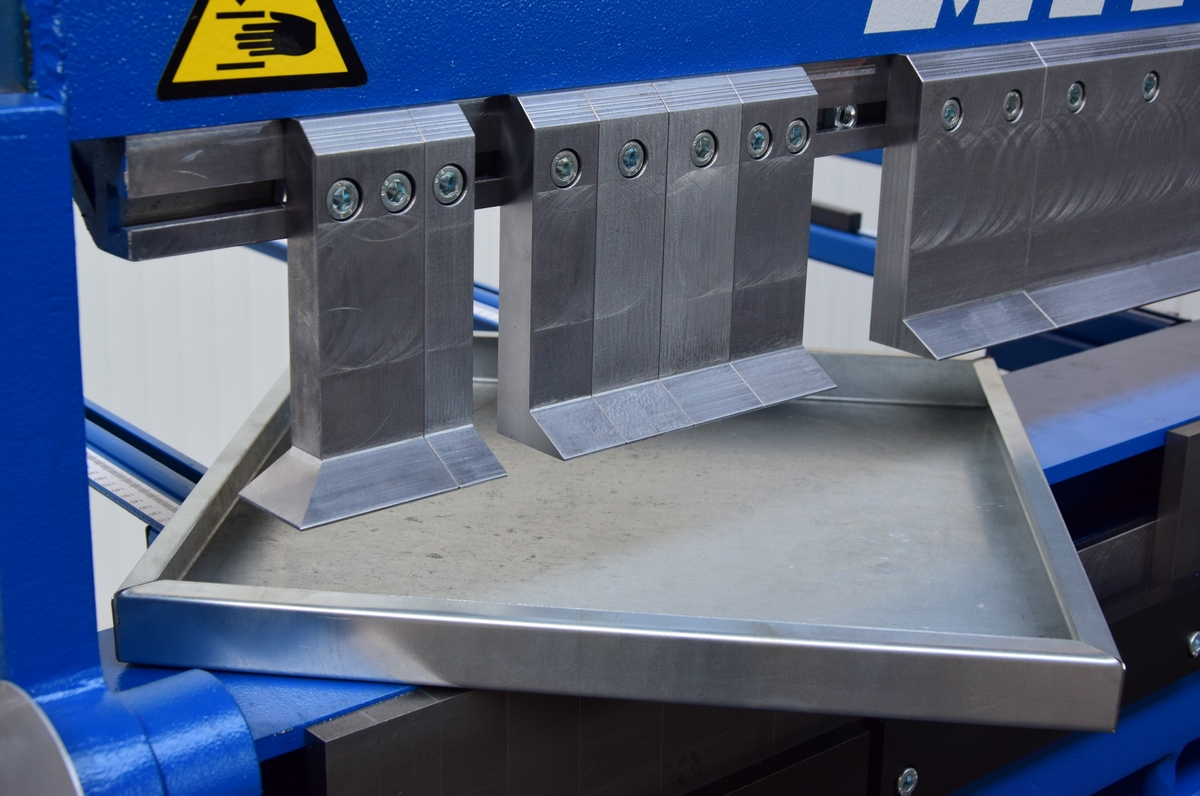

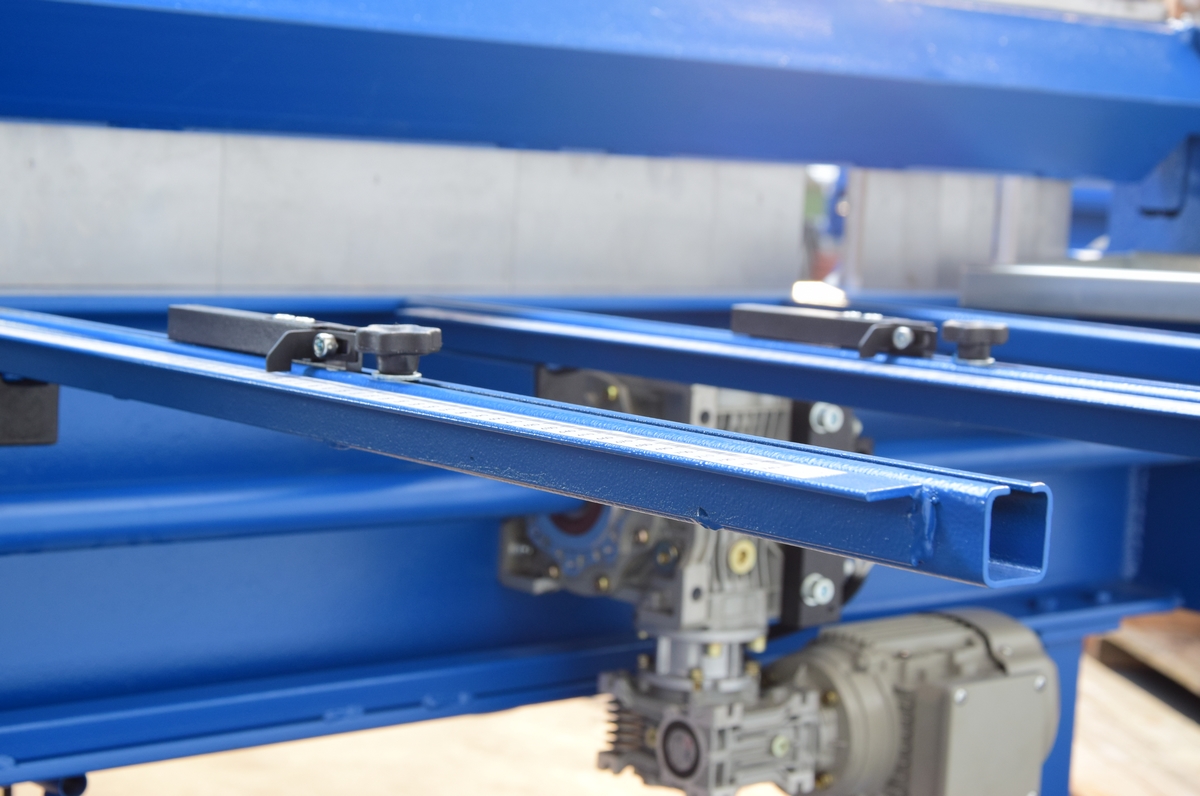

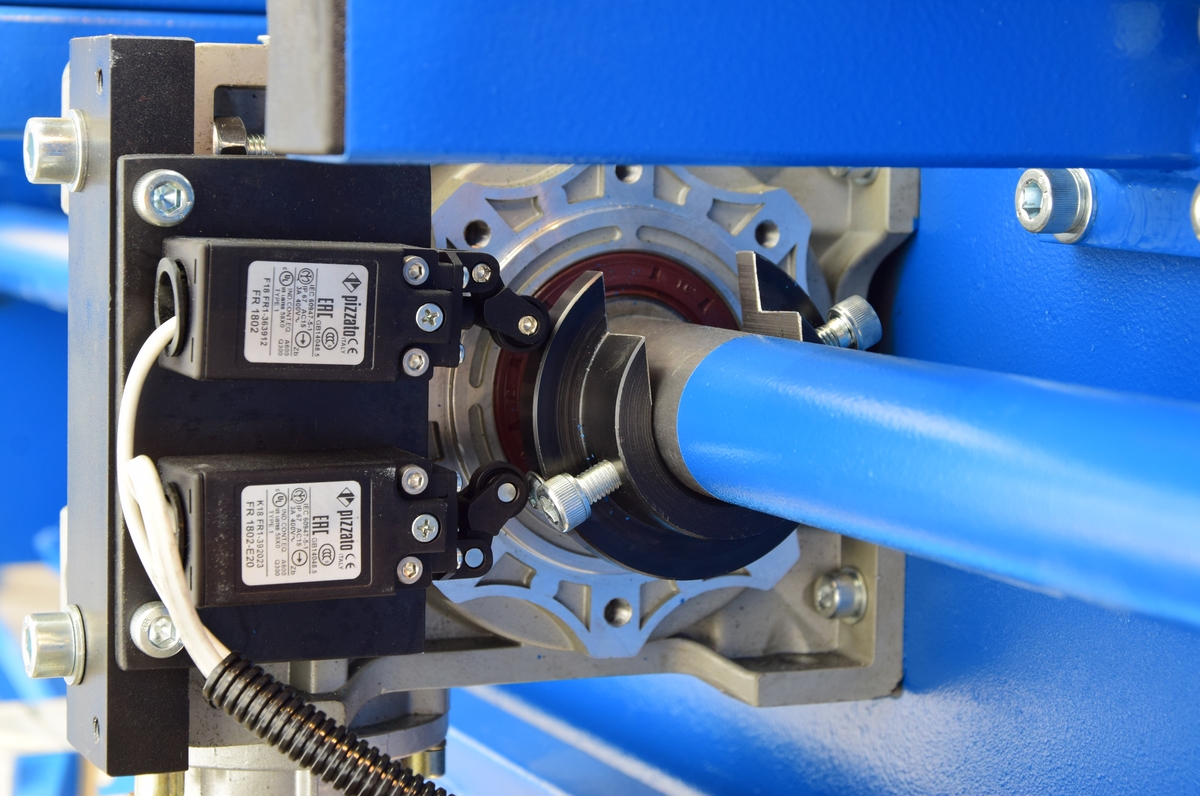

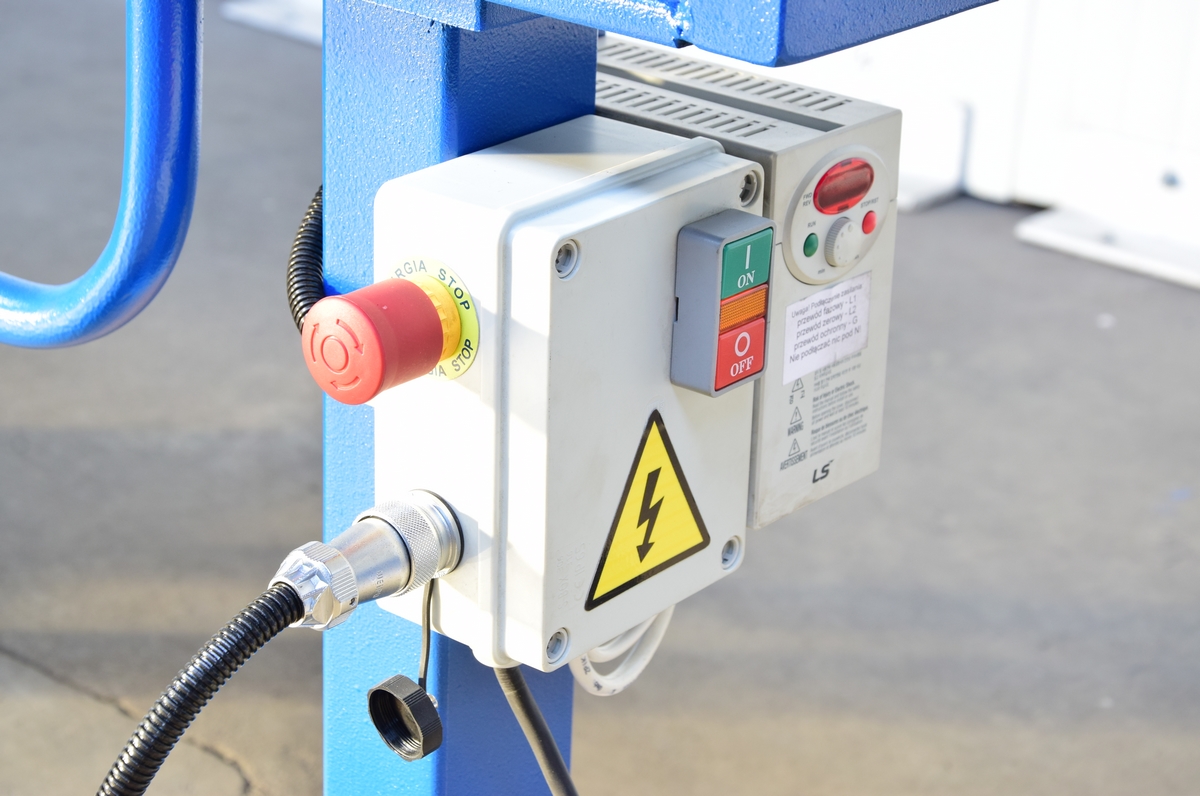

The bending beam is equipped with interchangeable segments allowing for very complicated bending. It is moved by means of foot switches. Electric drive with the use of LG inverter allows for stepless adjustment of the speed of lifting and lowering. The clamping beam is constructed in such a way that its upper part constitutes a guide for the rotary cutters.

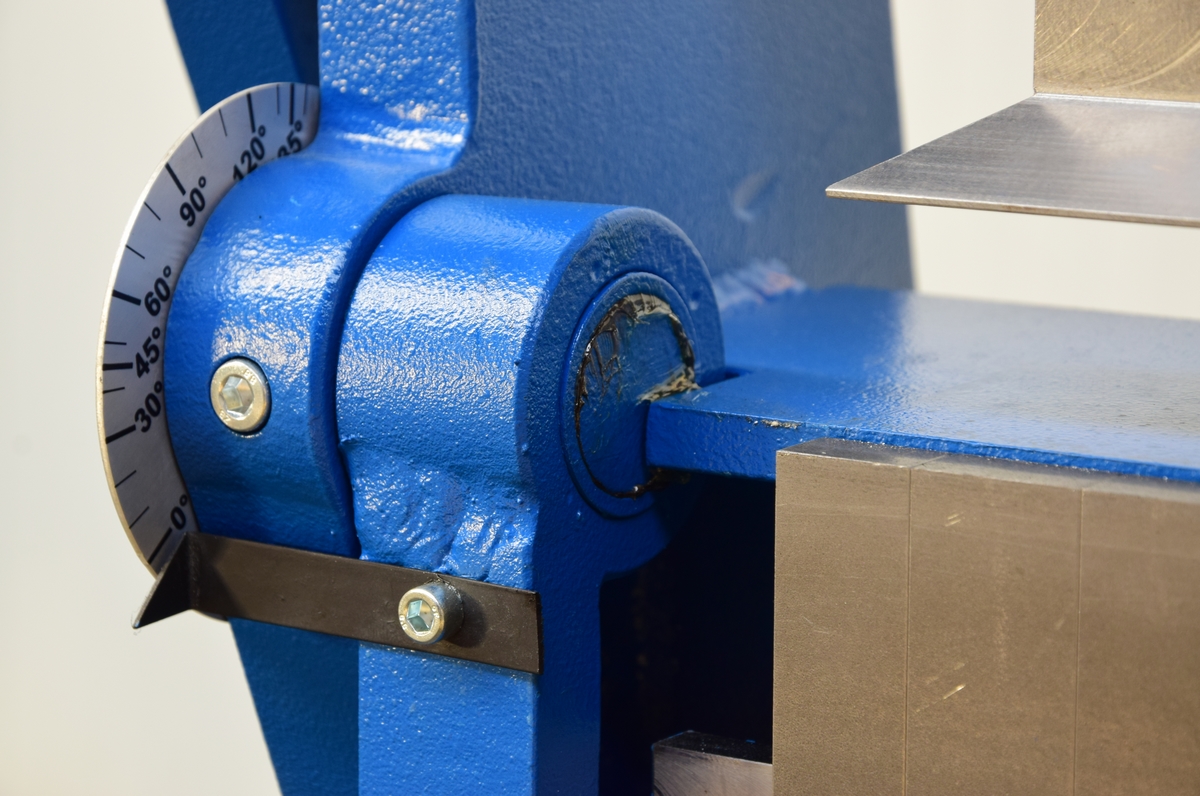

The bending operation is carried out by rotating the bending beam equipped with replaceable segments by means of a handle with a defined angle value. A protractor mounted on the left side of the bending machine, when viewed from the front, indicates the current bending angle of the sheet metal. A gas cylinder assists in lifting the bending beam.
Bending beam has adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet metal and its size also depends on the thickness of the bent sheet metal.
Bending machine elements are made on precision CNC machines
