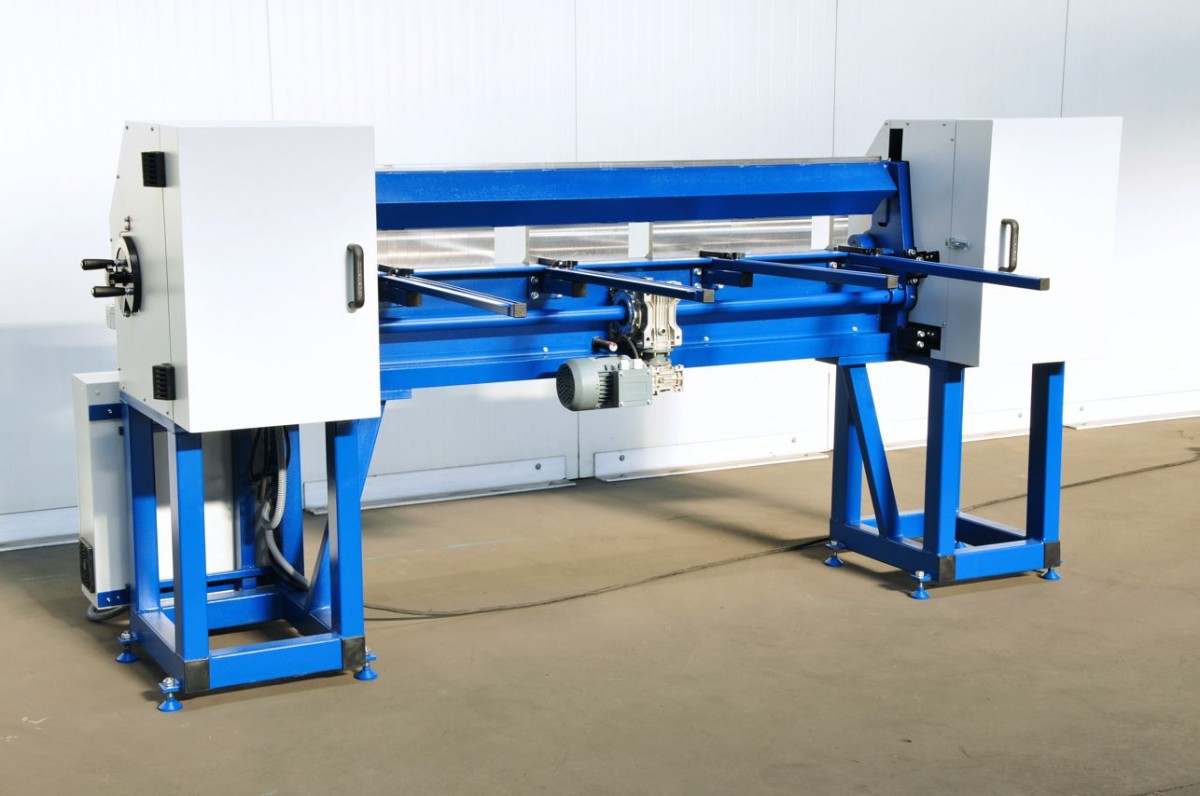

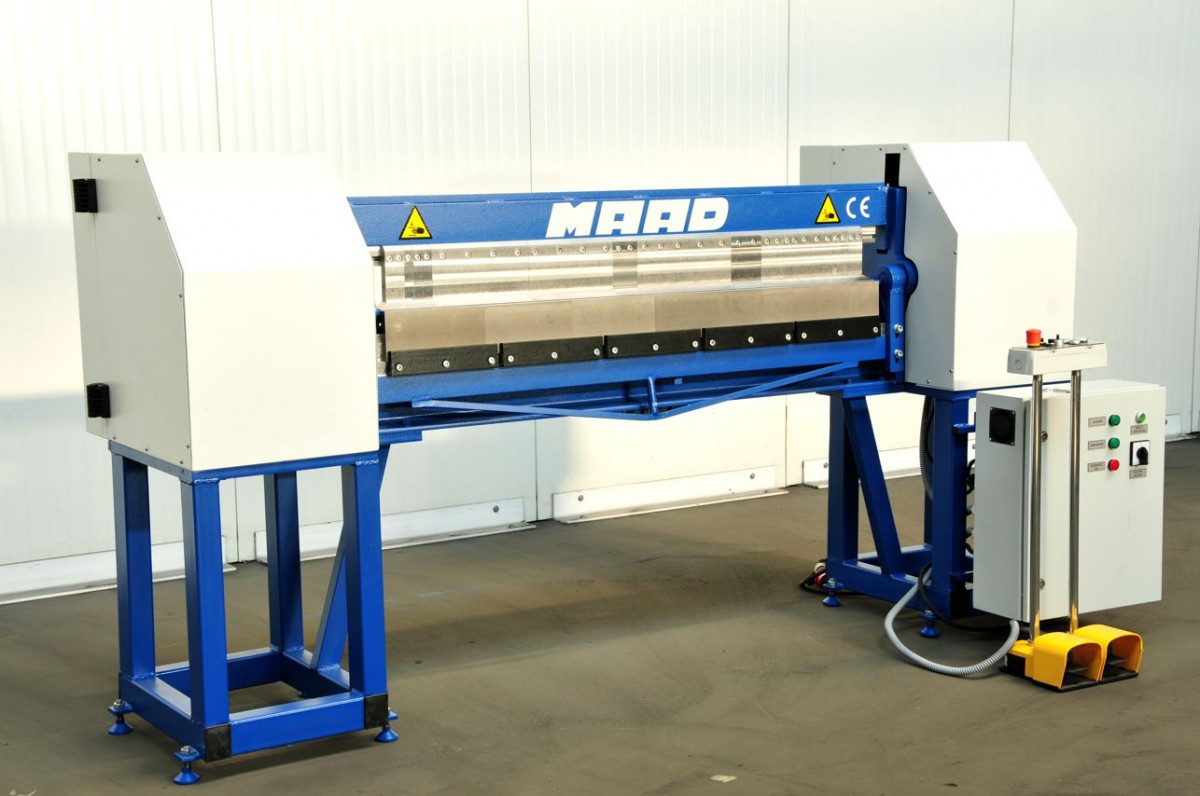

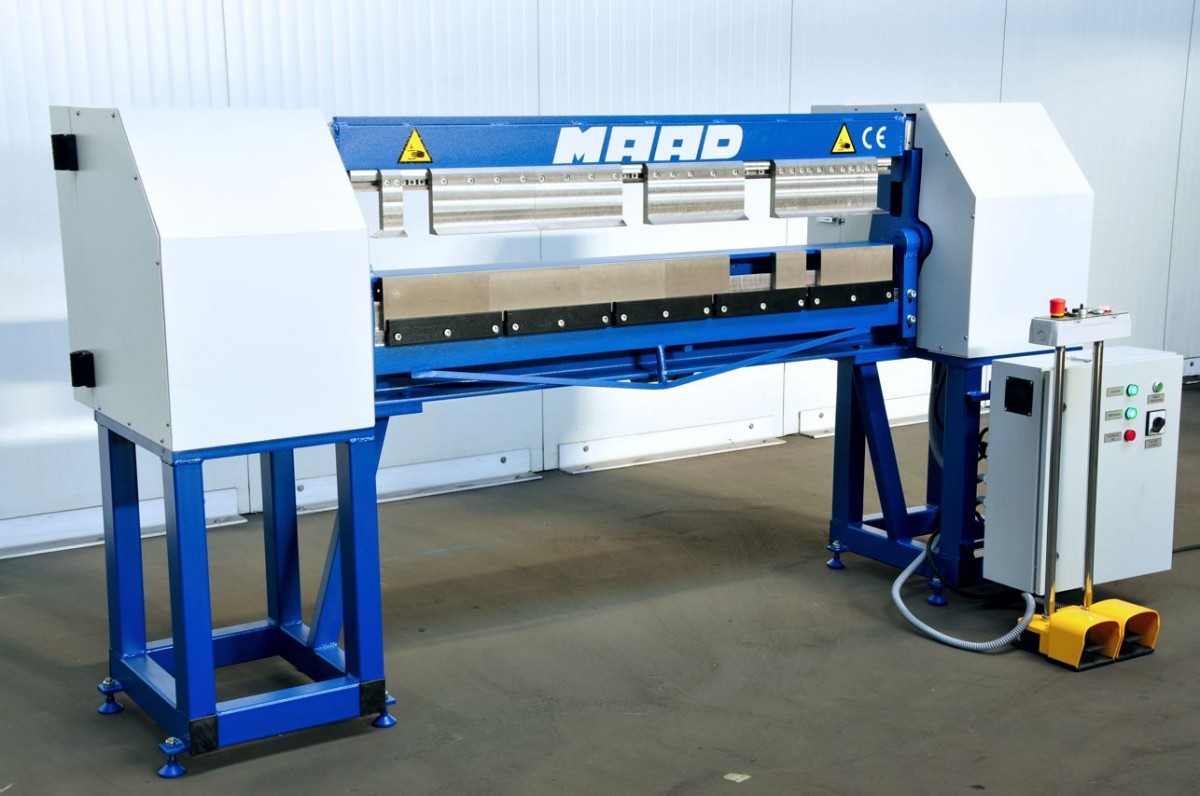

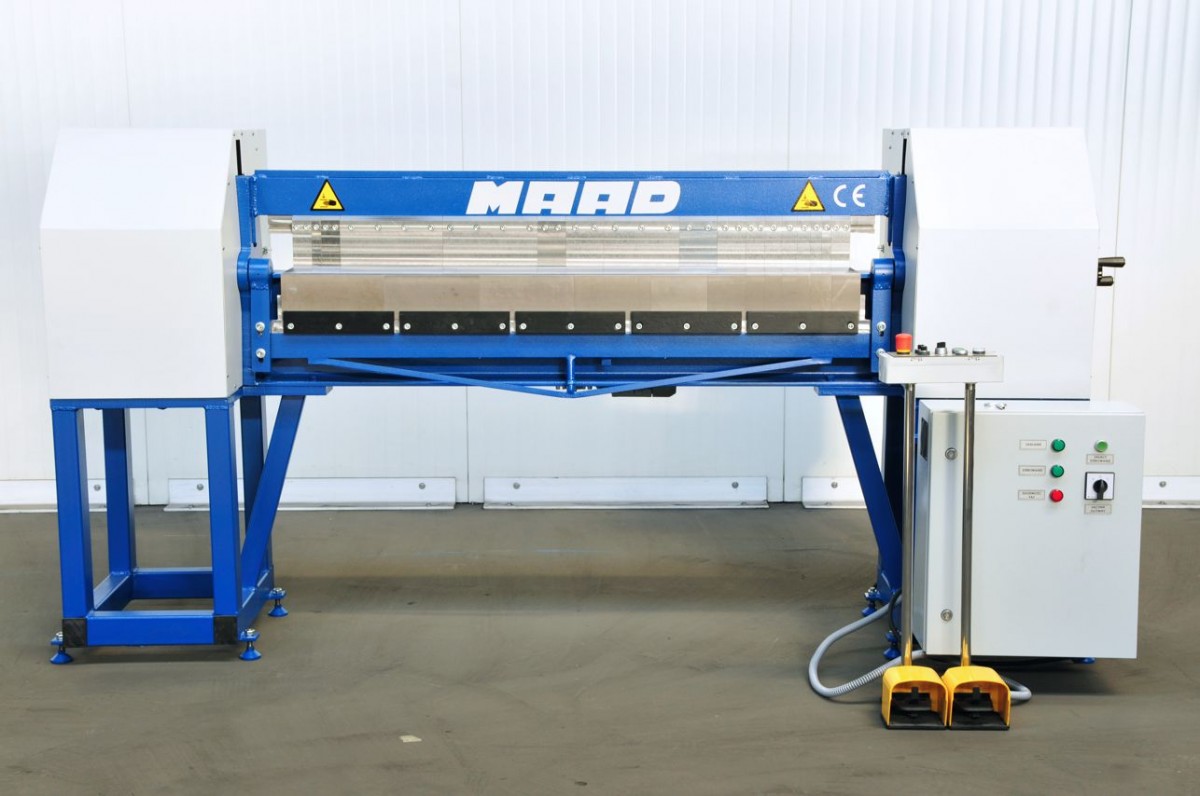

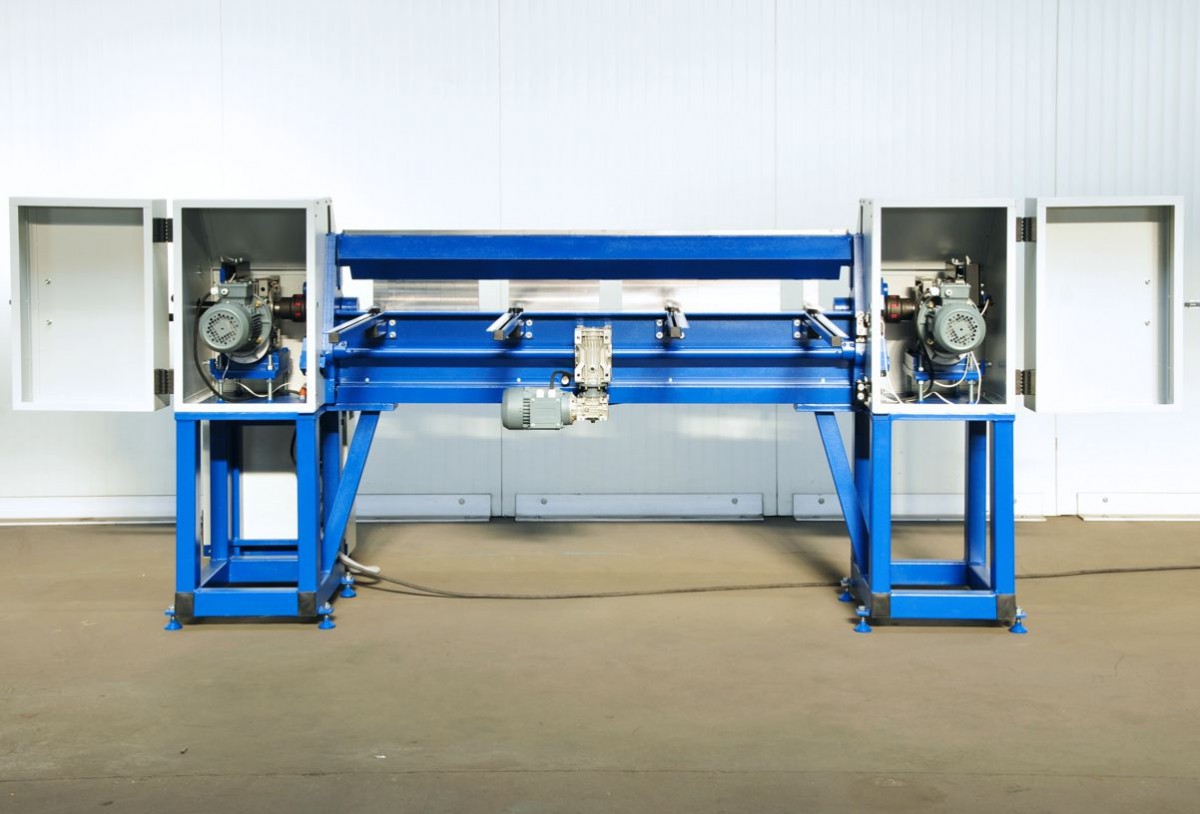

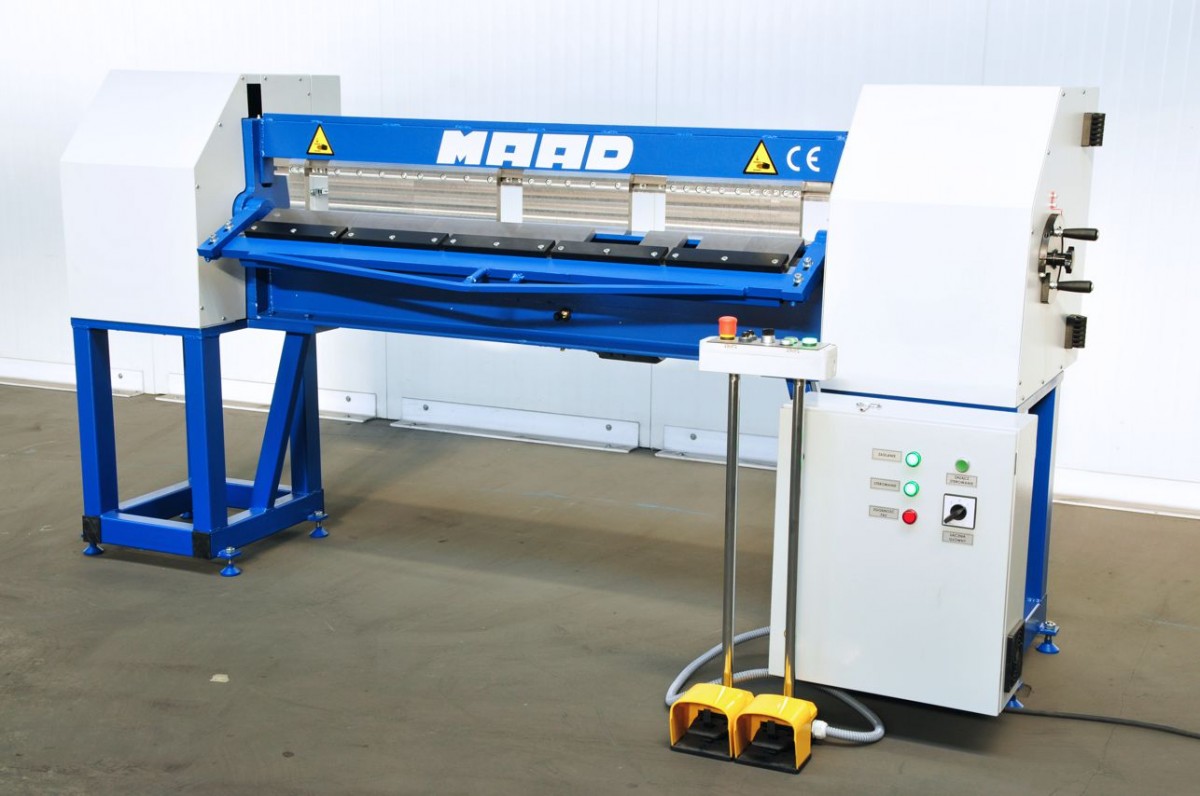

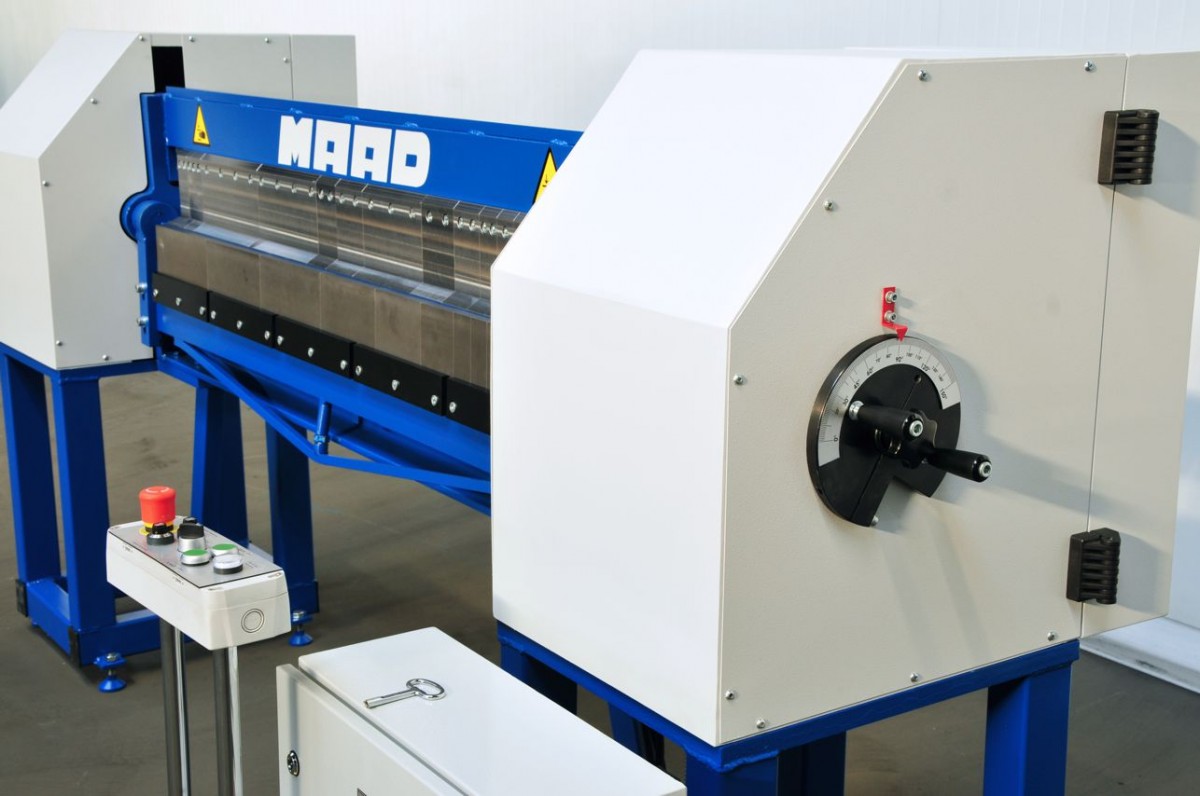

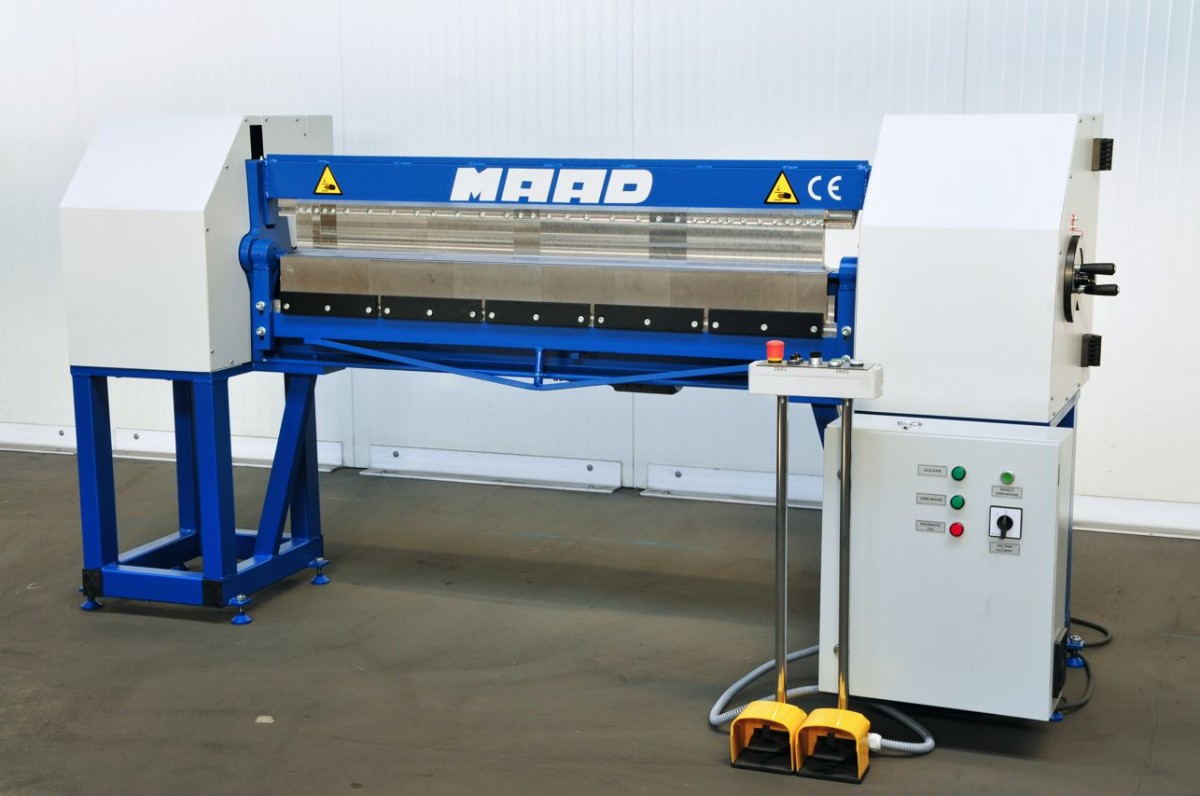

HSSM-1500/1.5 Bending machine with electric drive
Work width:
1520 mm
Max. thickness of the sheet:
1.5 mm for Rm < 400 MPa
Max. bend angle: 150°
Bending beam width: 20 mm
Weight: 750 kg

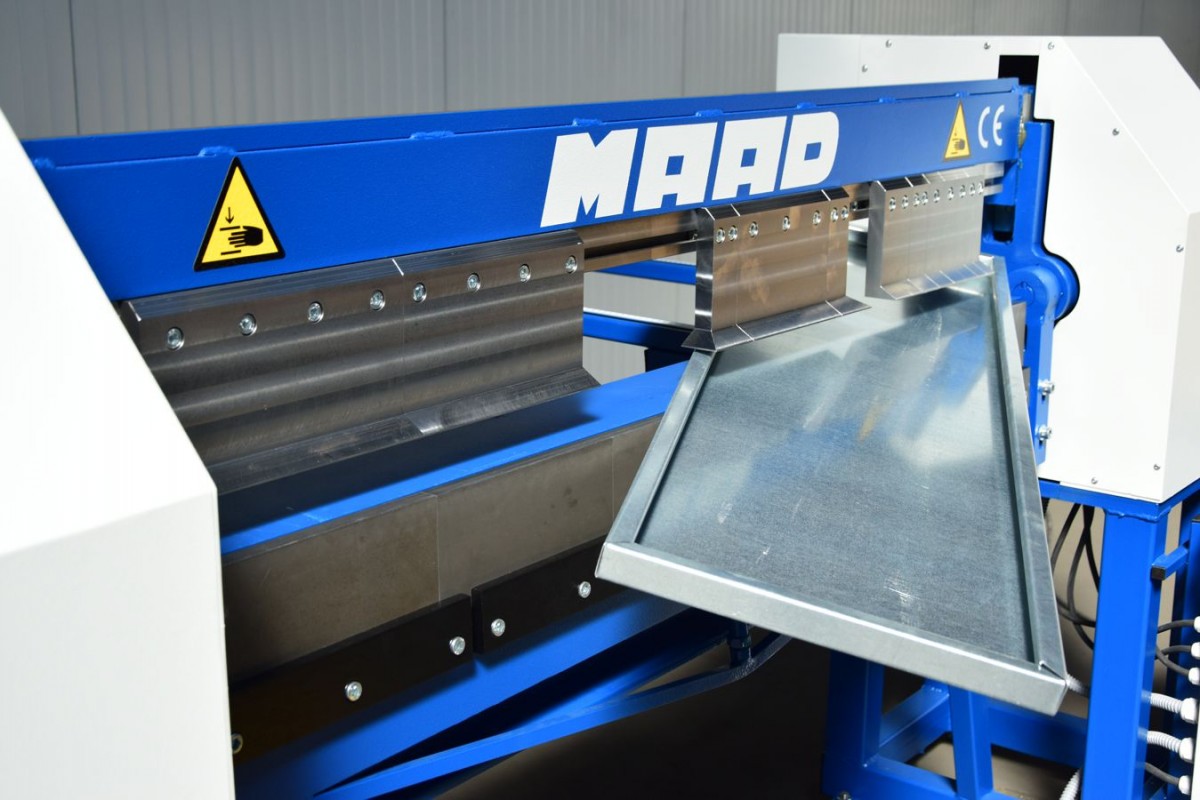

Compact, fast, quiet and reliable machine for precise sheet metal work.
HSSM-1500/1.5 bending machine with electric drive:
- Innovative design,
- Modern technical solutions,
- Jib control,
- Adjustable working speed,
- Replacement working beam elements,
- lower and upper split slat
- CE certified,
- faster work for single operator,
- greater precision in workpiece positioning thanks to hands-free operation,
- higher productivity,
- Improved ergonomics.

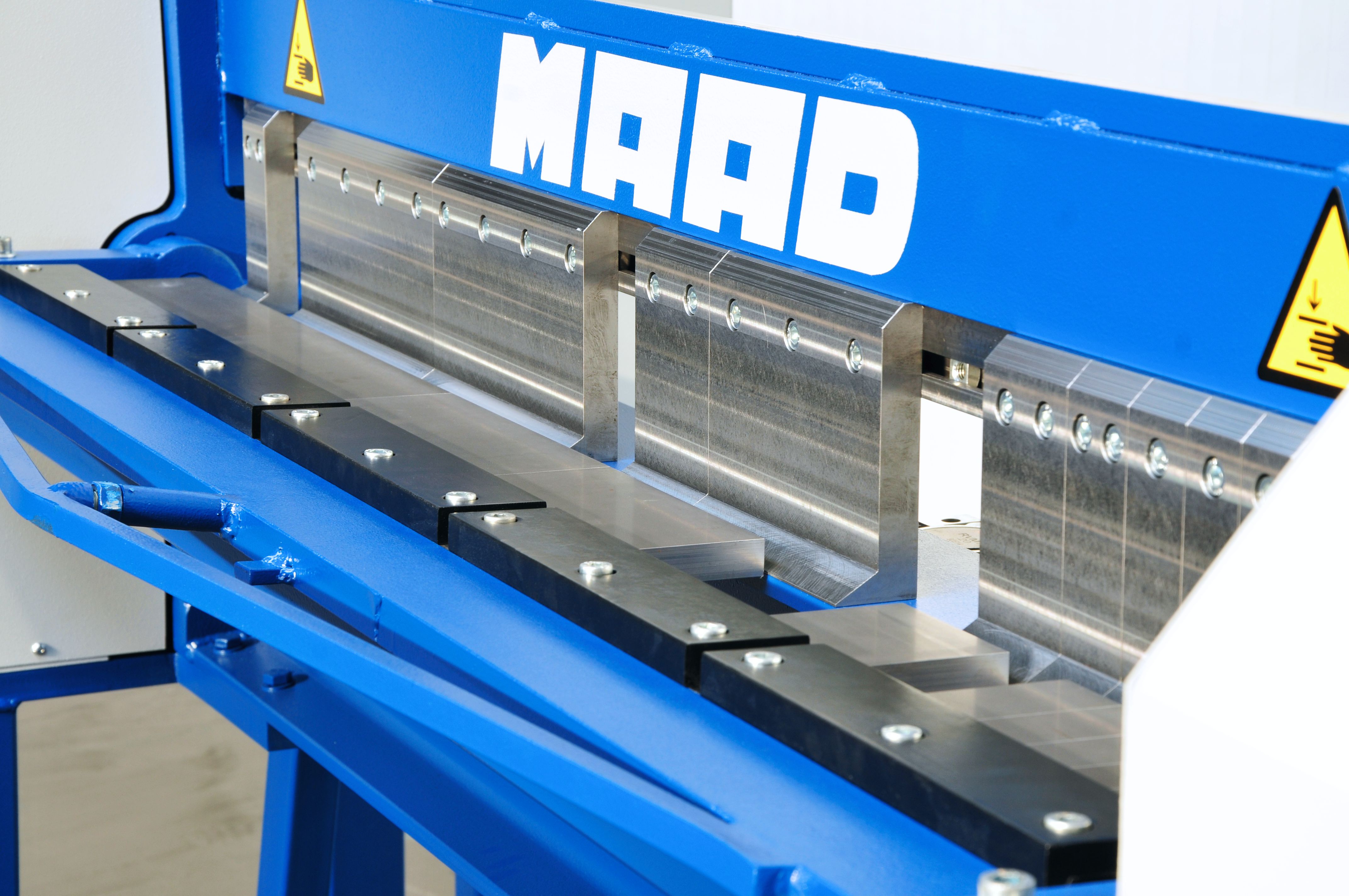

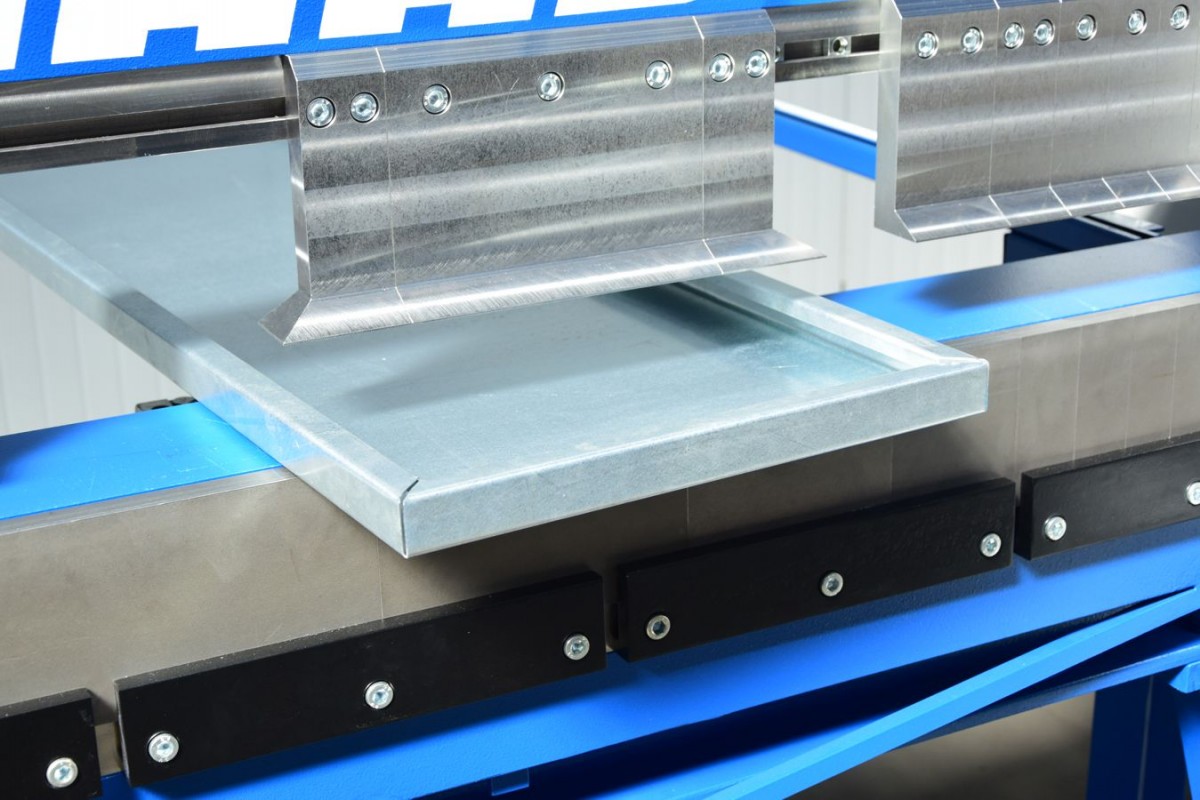

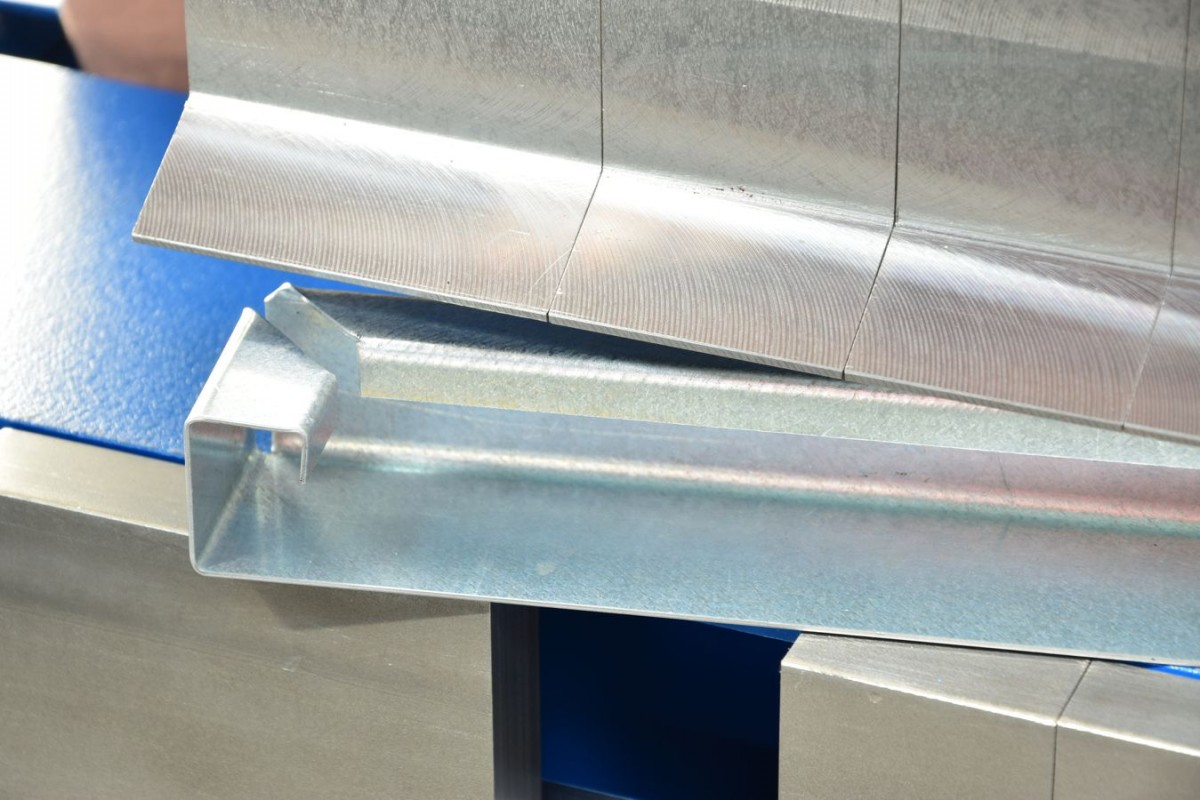

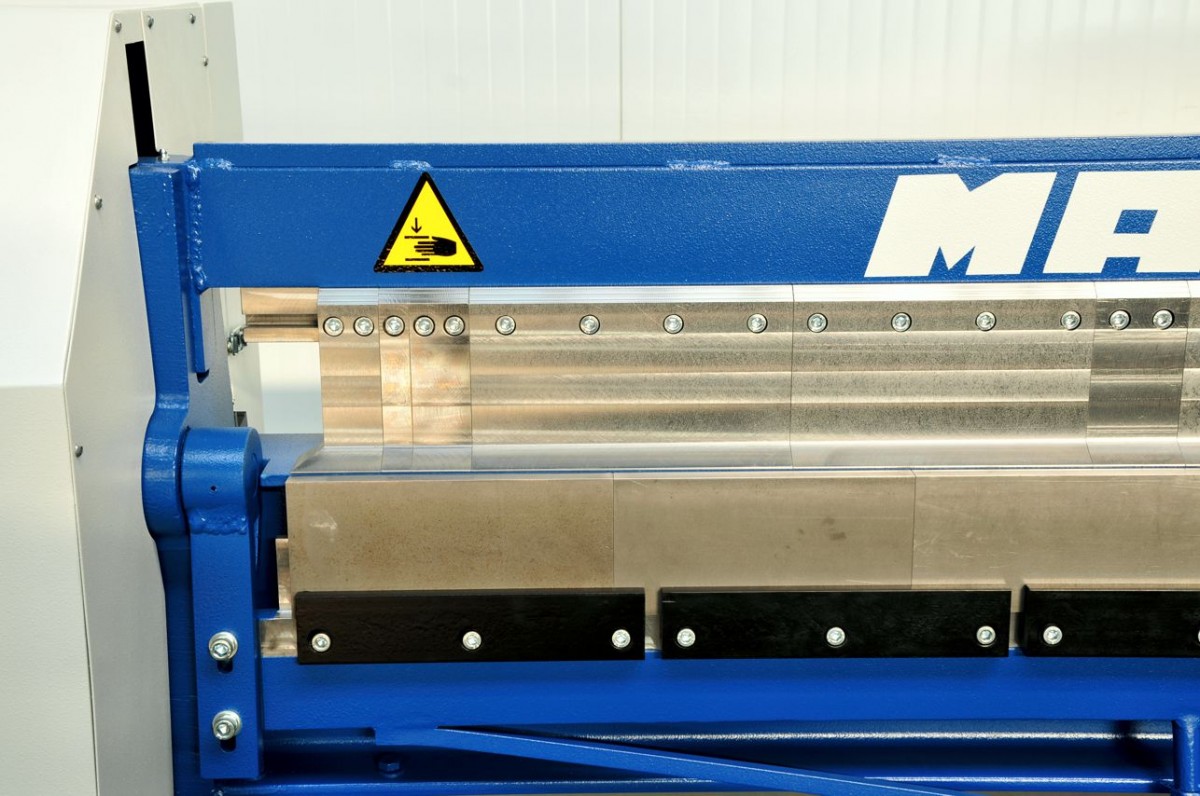

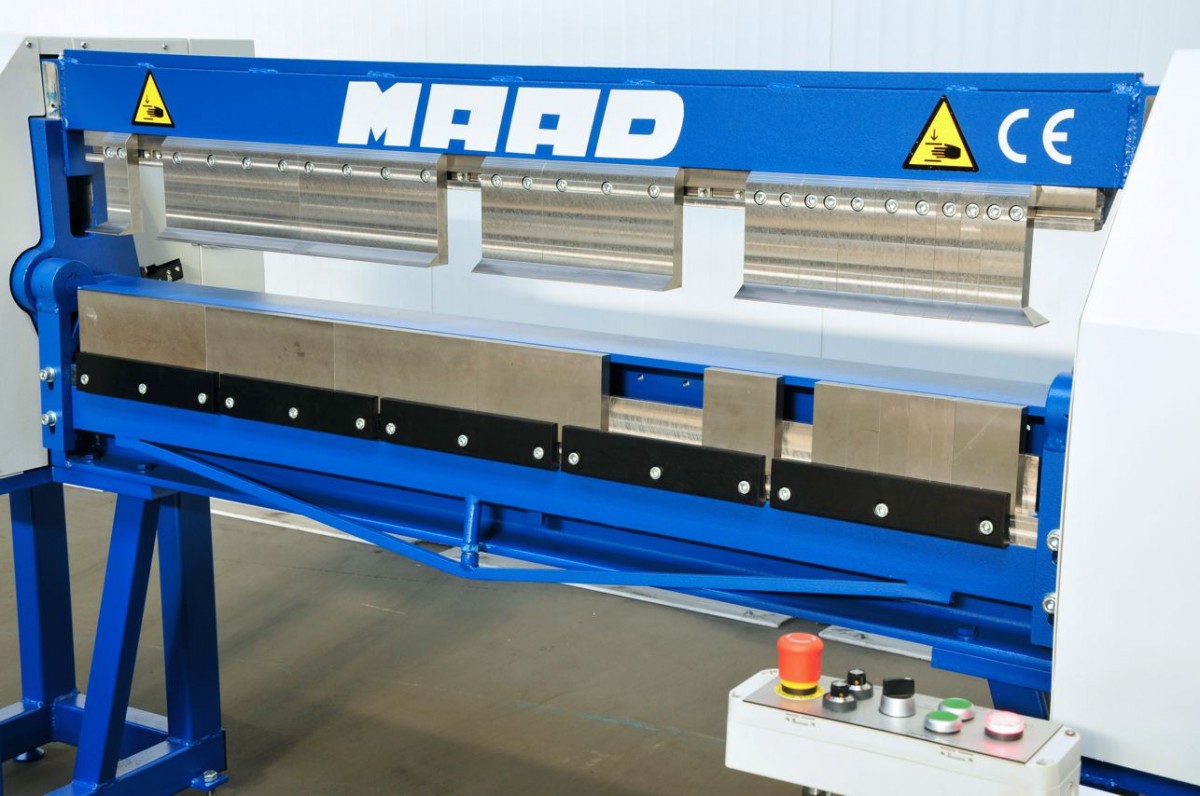

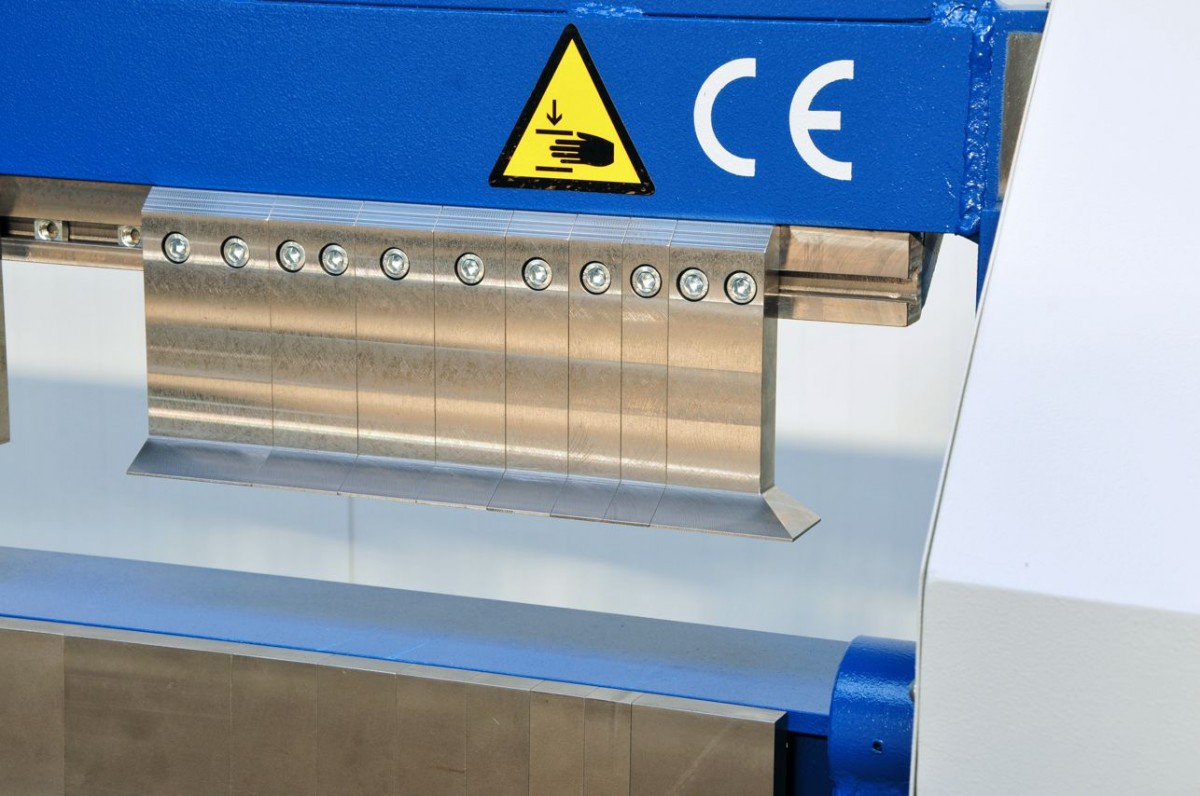

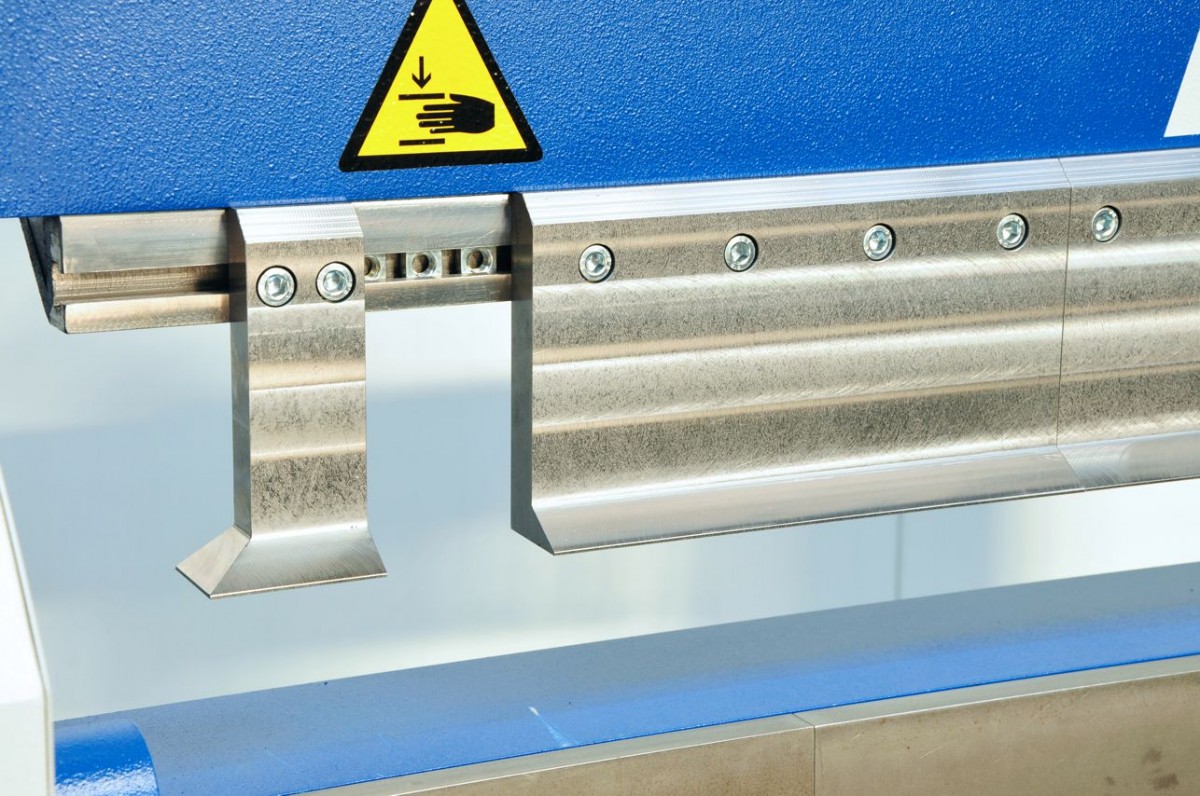

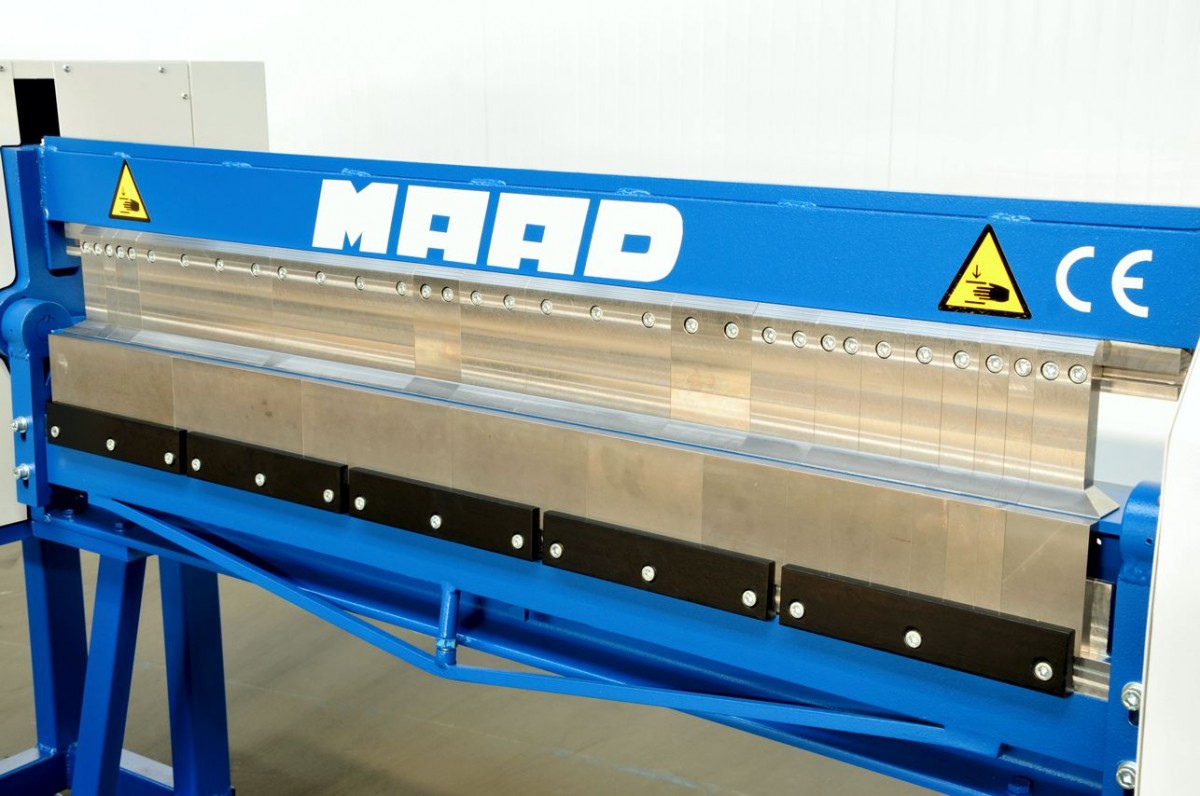

The HSSM-1500/1.5 segment bending machine is based on a proven design of the bending elements. Its functional design ensures high operating comfort and a wide range of practical applications. The pressure beam and the bending beam are equipped with segmented blades of different lengths, see below for an overview:
25/30/135/40/45/50/75/100/150/200/250/270 [mm].
The maximum clearance between the pressure bar and the base of the bending machine is 80 mm.

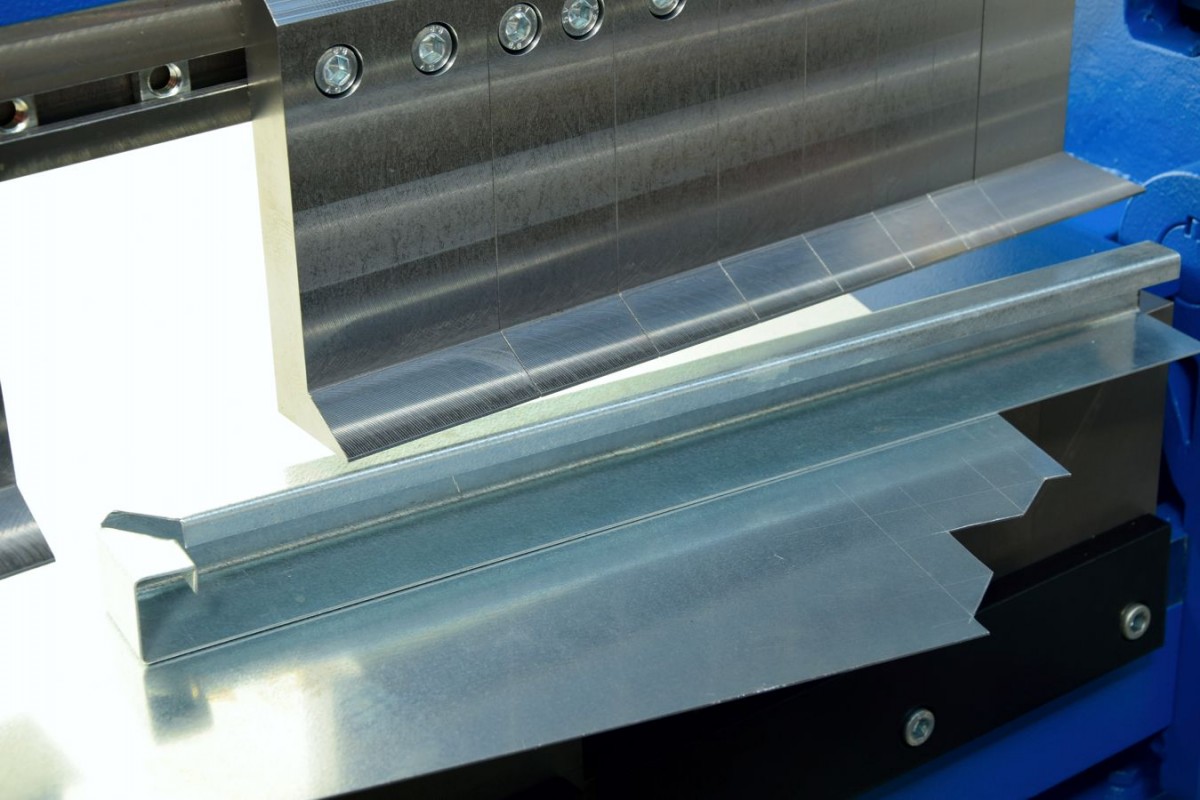

The blades are made of quality steel allowing for long term operation of the machine while maintaining proper bending parameters.
