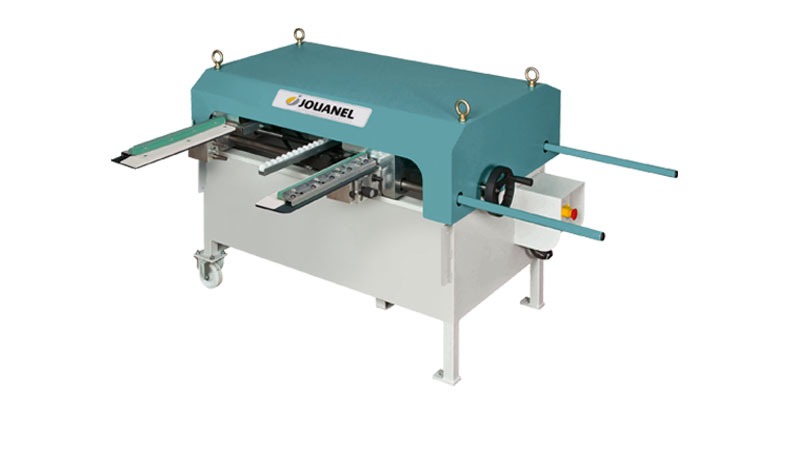

Lightweight electric roll forming machine for workshops or construction sites. Used to produce standing seam profiles in parallel or conical trays.
- machine designed for profiling on construction sites
- compact machine dimensions
- integrated manual cross-cutting
- handling system with wheels and a “roller” arm
- folding feed guides
- for all types of channels: parallel, initial, and conical
Standard equipment:
- minimum feed width 250 mm / maximum 800 mm
- feed width adjustment via a wheel
- 7 sets of rollers
- quick adjustment of profile return
- sheet metal guide designed for tapered troughs (one side after the other)
- 2 swivel casters + 2 legs + carrying handle
- tray straightener at the outlet
- hanging rings
OPTIONAL EXTRA
Digital length programmer, reference PROBAC-LGPRO, accuracy 0/+5mm
Ask for price.
Product features:
| Net weight | 320 kg |
| Dimensions | 1200x1350x1050 mm |
| Maximum thickness zinc/copper/aluminum | 8 mm |
| Power supply | 220 V |
| Roll forming speed | 9 m/min |
| Minimum trough length | 400 mm |
| Hanging rings | 4 |
