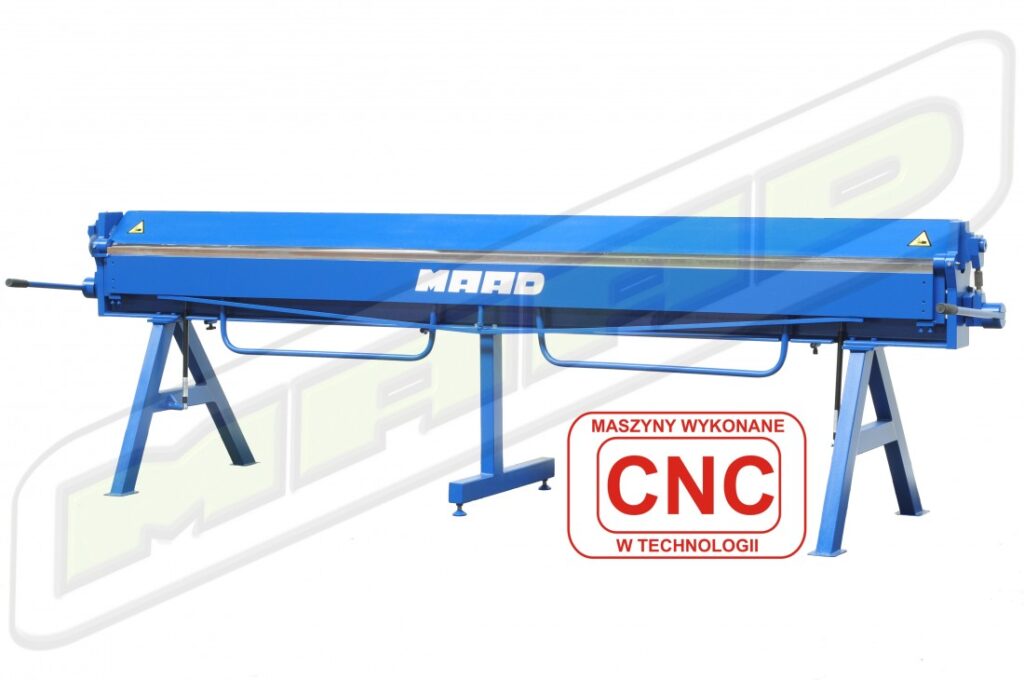

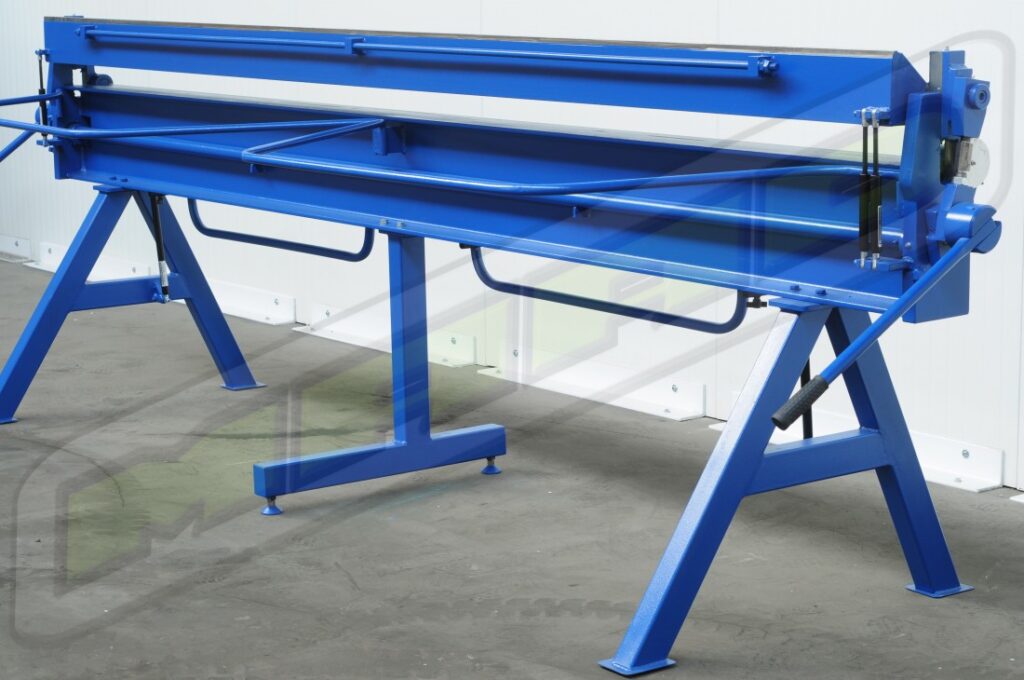

ZG-3500/0.8


Working width:
3600 mm
Max. sheet thickness:
0.8 mm for Rm < 400 MPa

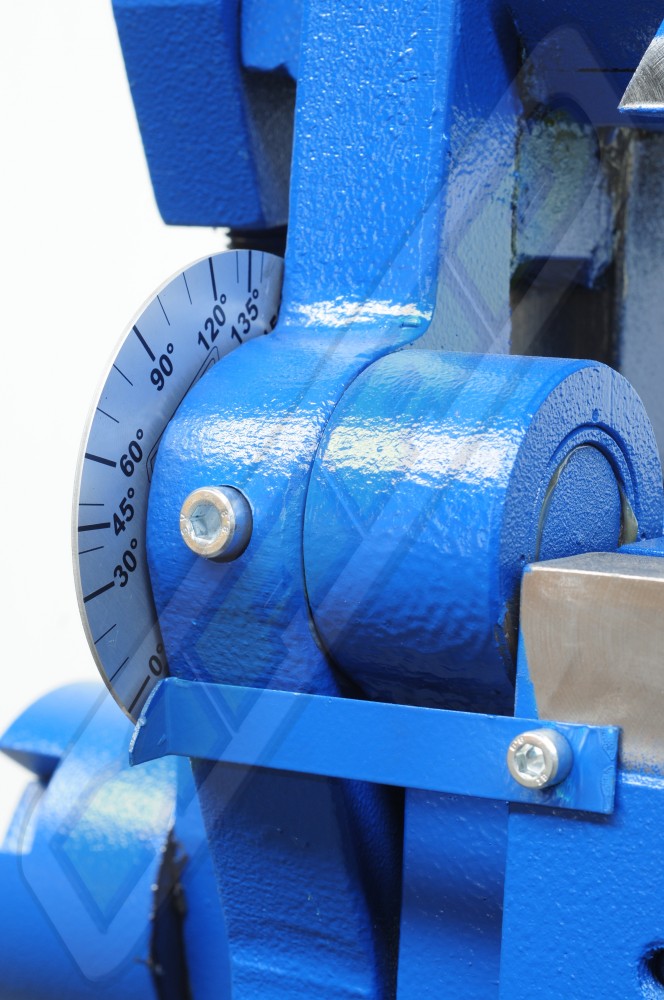

Max. bending angle: 130°
Width of the
bending beam: 30 mm
Weight: 800 kg

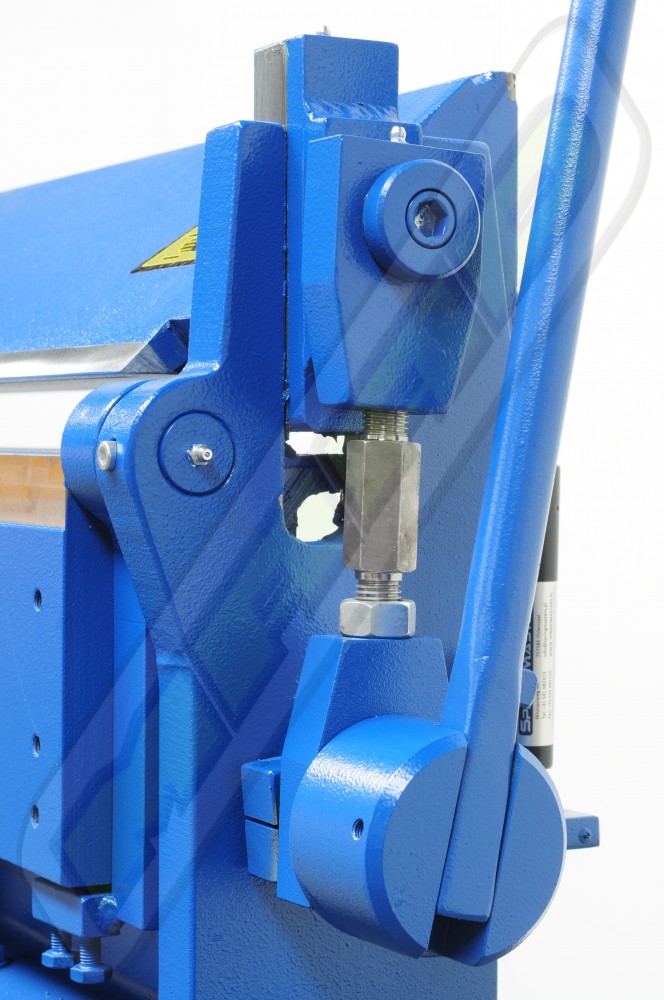

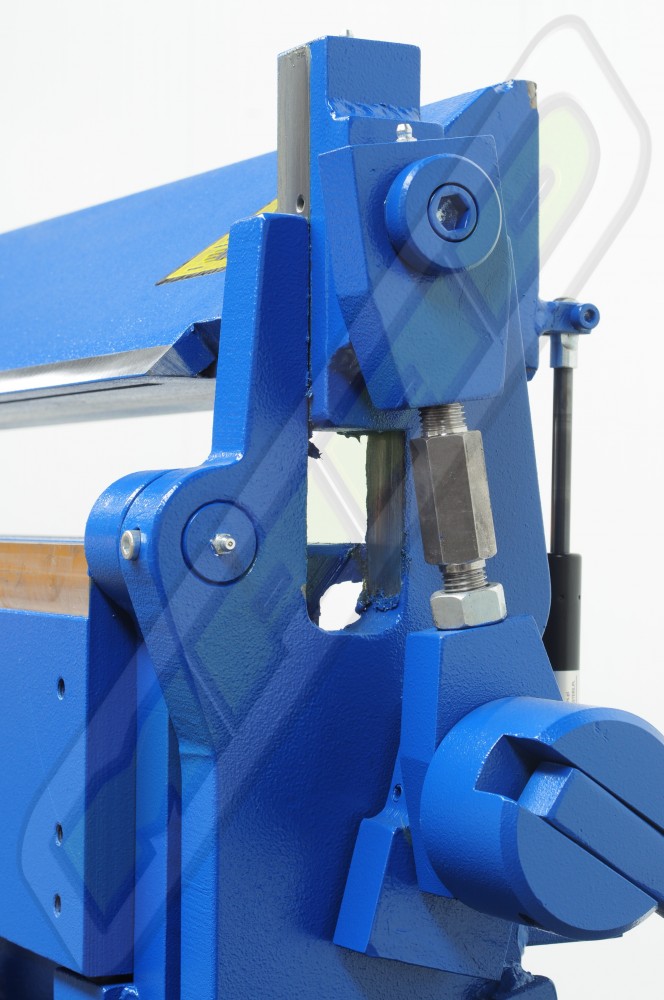

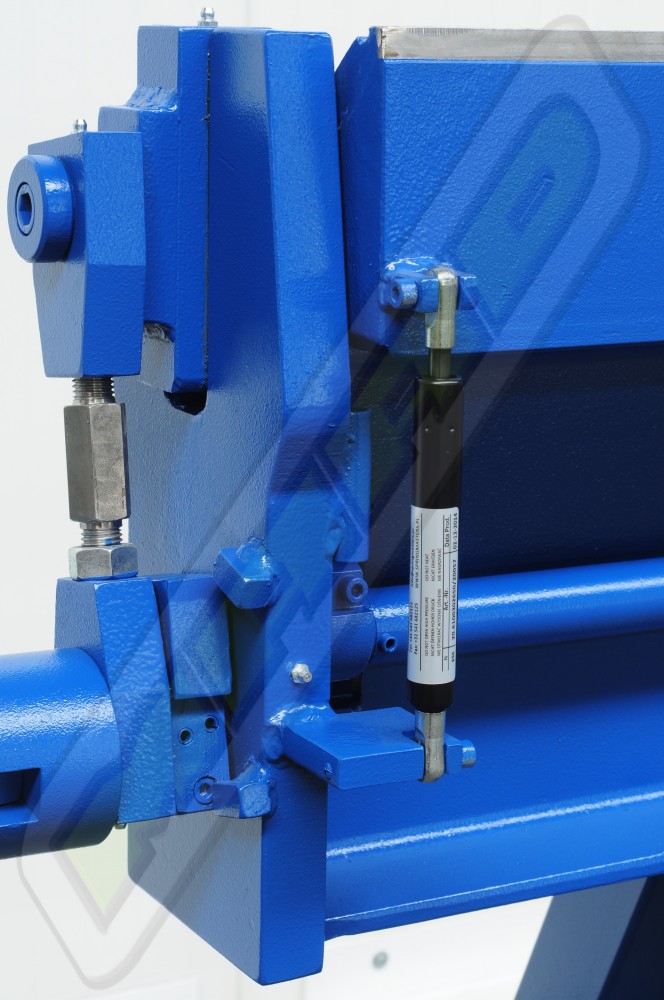

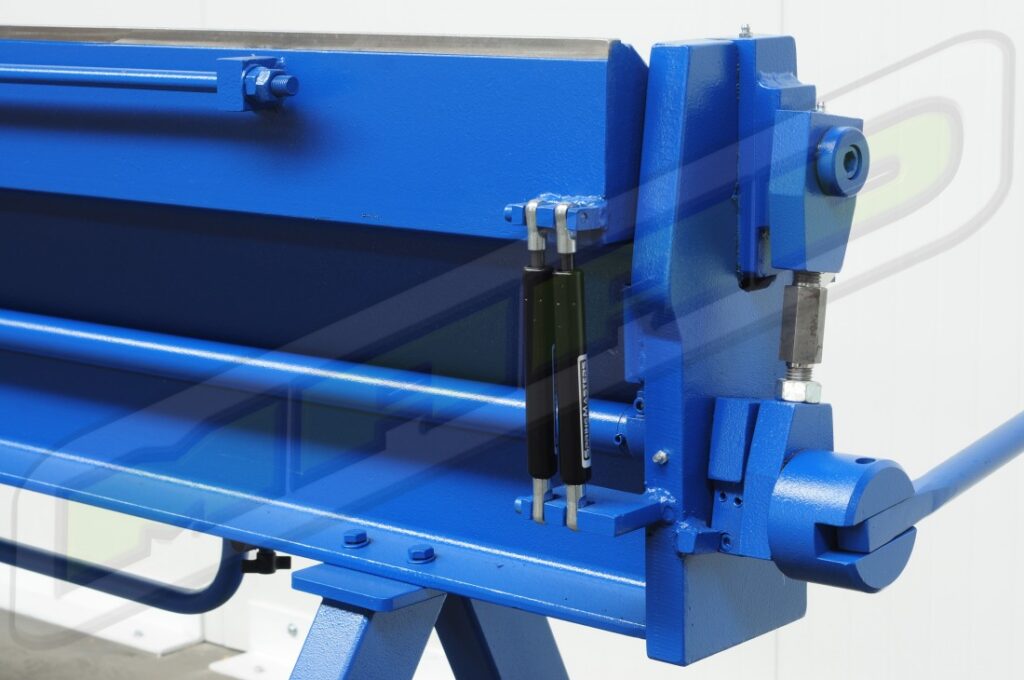

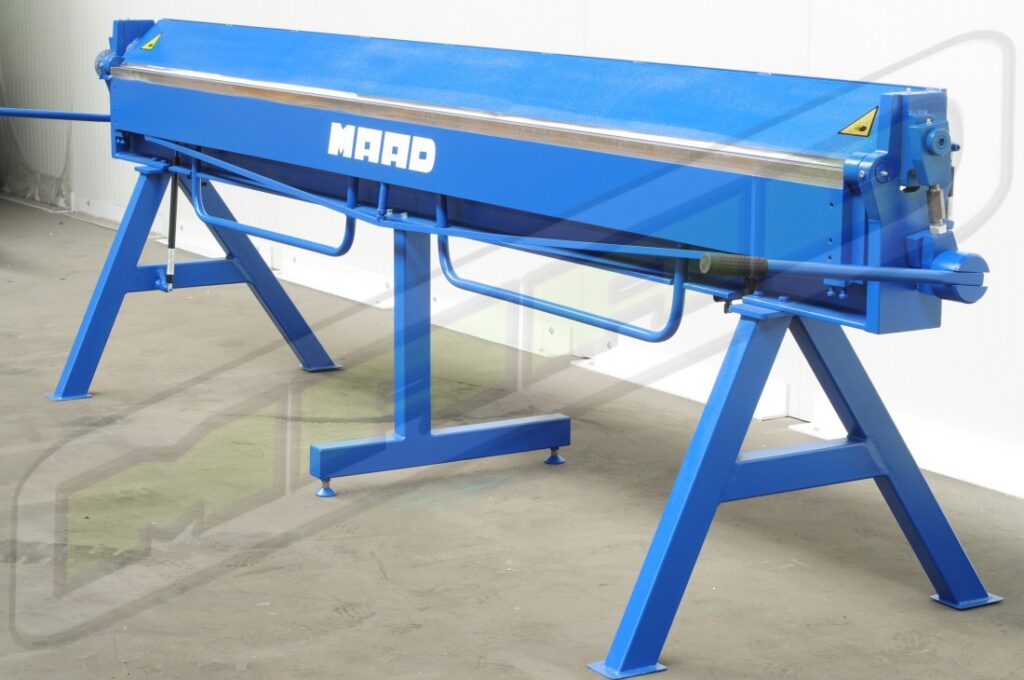

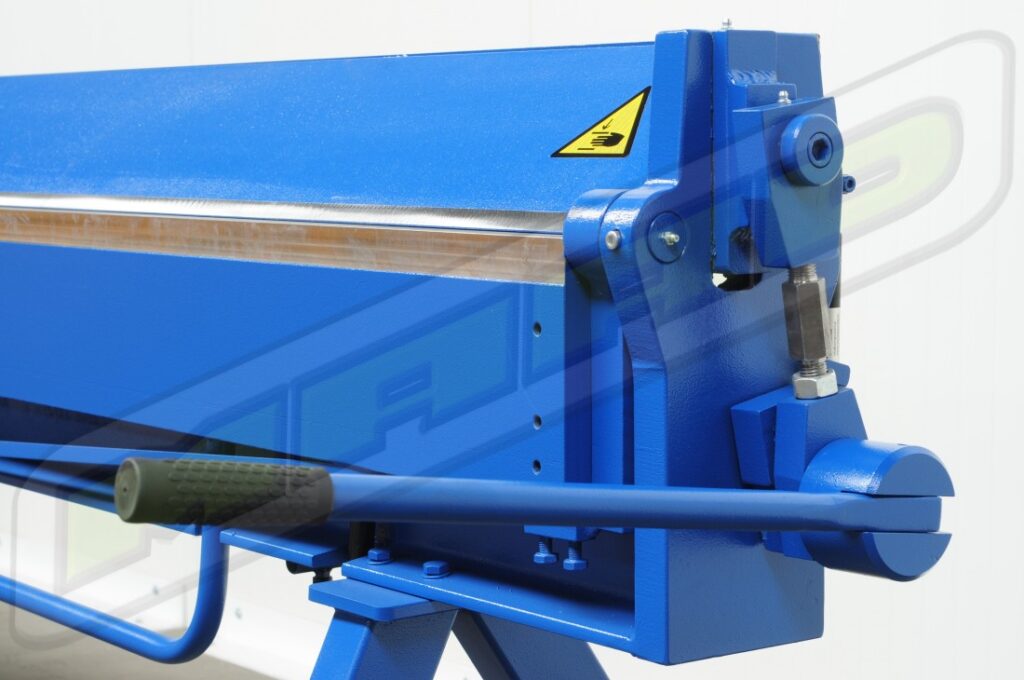

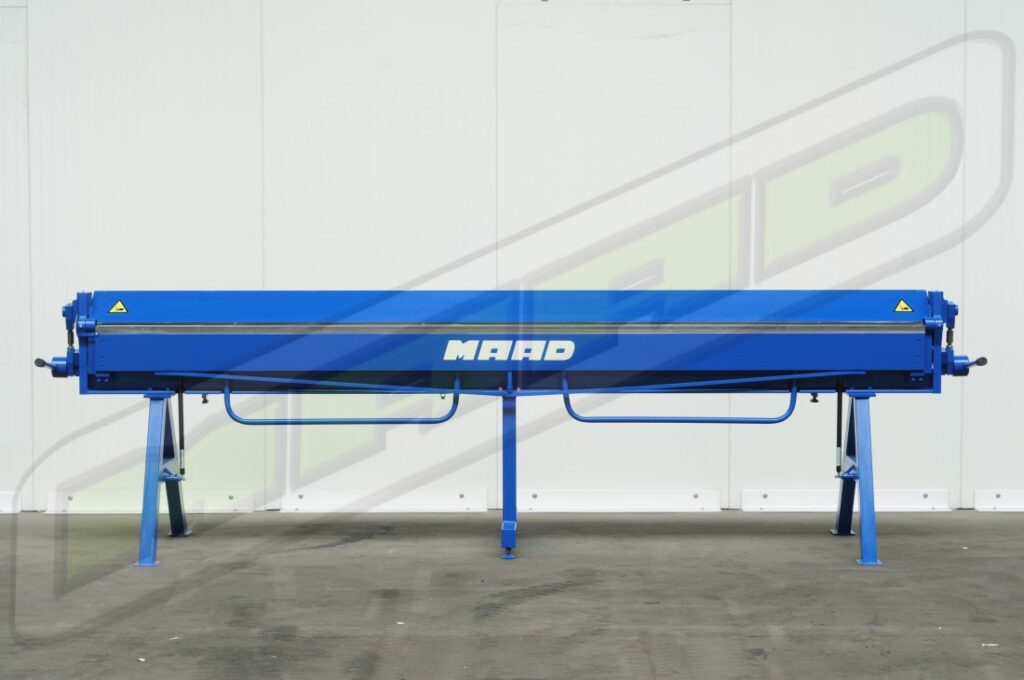

The ZG-3500/0.8 model is a custom-made machine due to its non-standard working length of 3600 mm. The machine’s construction and the materials used are identical to those of the ZG-3000/1.0 model! The machine’s side mechanisms are constructed using brass bushings, ensuring long-term, trouble-free operation. The strong, solid, and compact design of these bending machines guarantees long-term service while maintaining high-quality bending results.

All working beams are manufactured from a single piece on CNC milling machines with a minimum working length of 4000 mm!
