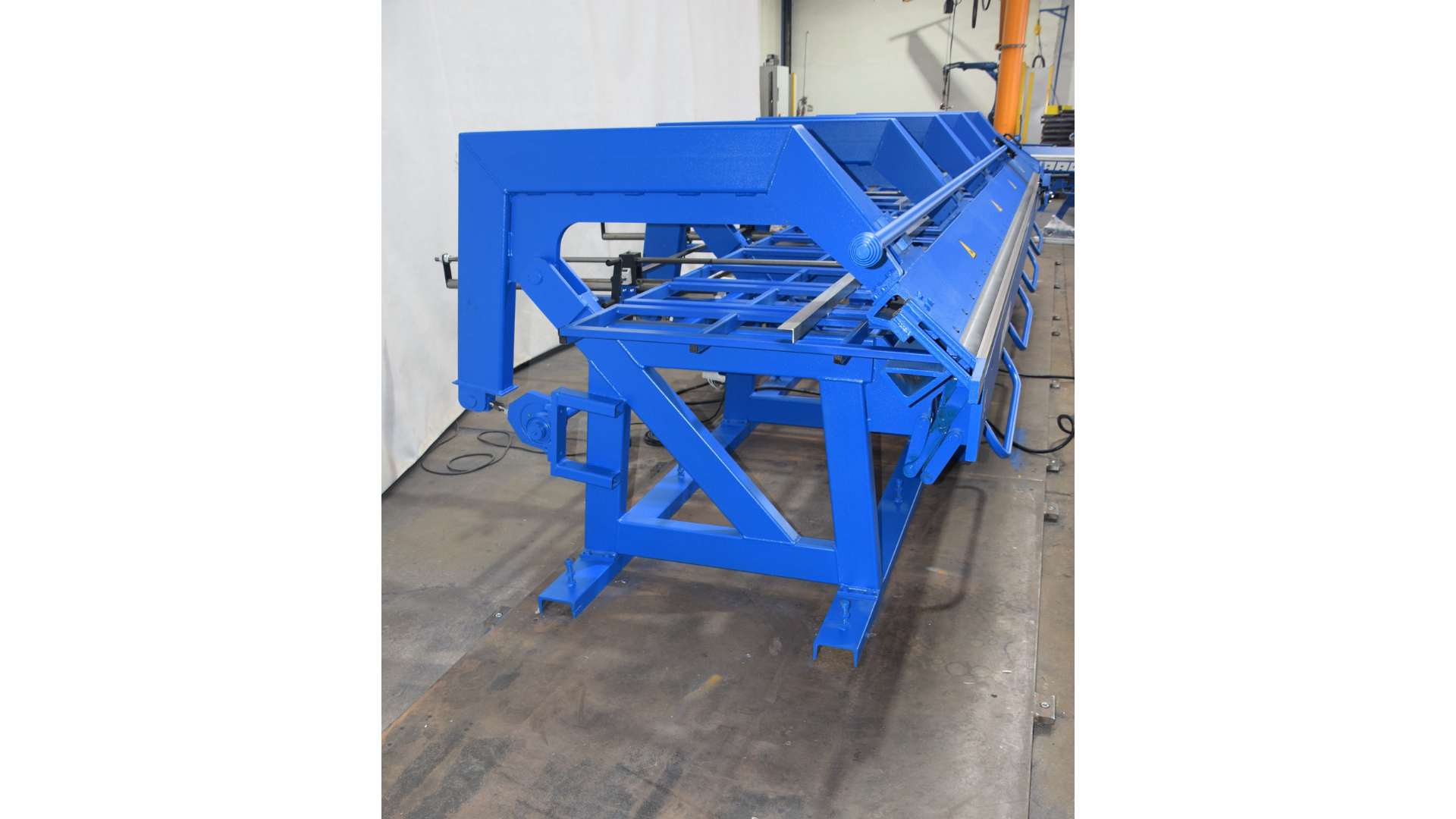

The ZGSE-6000/1.0 bending machine is a machine whose key components and mechanisms have been entirely manufactured using CNC machine tools. Thanks to its narrow bending beam and the special arrangement of the working beams, it is possible to perform a variety of complex sheet metal operations. The bending machine is compatible with the NKS-1.2 roller shears.
Additionally, the bending machine features a counterweight system, allowing two people to work comfortably on the machine!
The machine is designed for bending various types of sheet metal up to a thickness of 1.0 mm.
Basic product data (technical specifications):
| Max. sheet thickness [mm] | 1.0 for Rm < 400 MPa |
| Height [mm] | 1318 |
| Width [mm] | 6090 |
| Depth [mm] | 1850 |
| Max. sheet width [mm] | 6000 |
| Max. sheet insertion depth [mm] | 1030 |
| Max. bending angle | 150° |
| Bending beam width [mm] | 20 |
| Weight [kg] | 1900 |
| Operating personnel | 2 people |
