INNOVATIVE upper pressure bar drive system.
- semi-automatic control of the pressure bar using two foot switches,
- upper beam speed control,
- CE certification,
- faster operation for a single operator,
- greater workpiece positioning precision thanks to hands-free operation,
- higher productivity,
- improved work ergonomics.

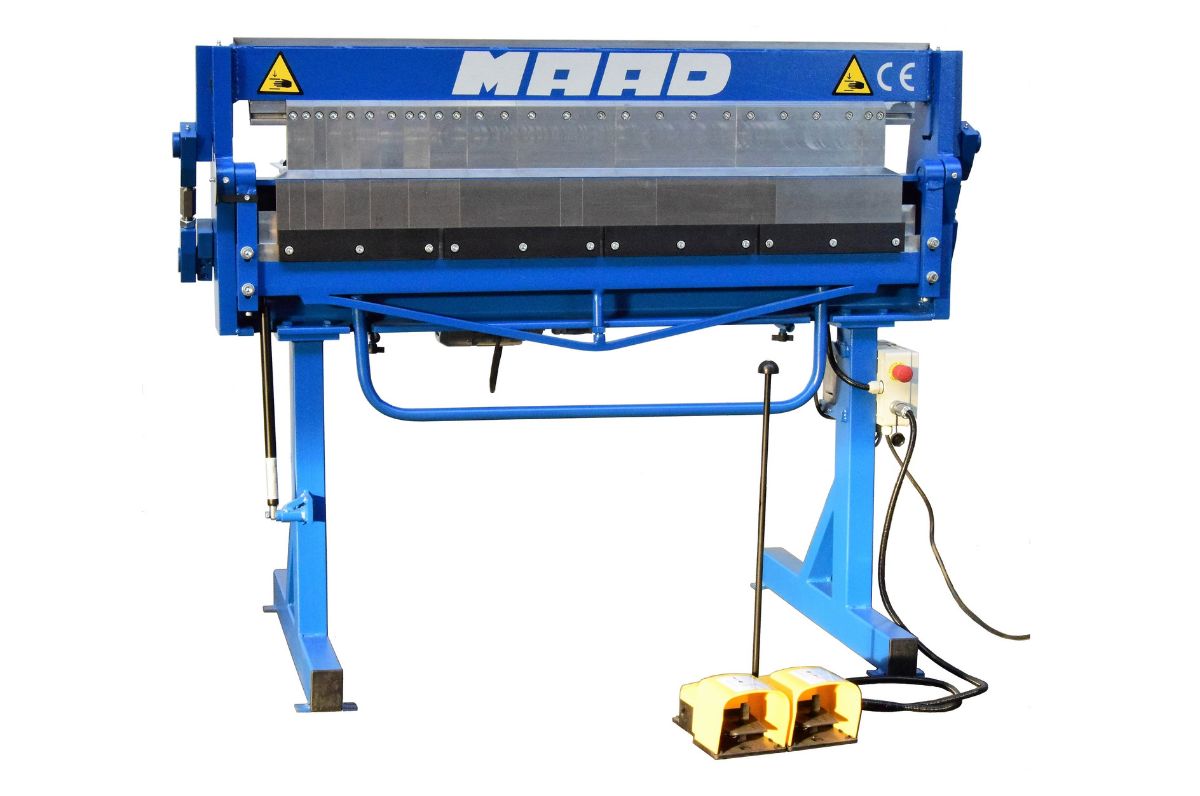

A bending machine particularly suitable for fabricating chimney caps, eaves, firewall ends, and many other applications. Its functional design ensures high operating comfort and a wide range of practical applications.
The upper and lower beams are equipped with segmented blades in the following sizes: 25/30/35/40/45/50/75/100/150/ 200/250/270 mm. The blades are made of high-quality steel, ensuring long-term operation of the bending machine while maintaining appropriate bending parameters. The clearance between the machine base and the upper blades is as much as 102 mm, the maximum bending angle is 155 degrees, and the bending beam width is only 15 mm, which results in extensive capabilities for sheet metal fabrication.
The stable and robust construction (machine weight 350 kg) ensures trouble-free bending of steel sheets up to 1.2 mm thick.
The main working elements of the bending machine are three working beams: a fixed beam, a pressure beam, and a bending beam.
The pressure beam is equipped with interchangeable segments that allow for very complex operations. It is moved via foot switches. An electric drive using an LG inverter allows for stepless adjustment of its lifting and lowering speed. The pressure beam is designed so that its upper part serves as a guide for the circular shears.
The bending operation is performed by rotating the bending beam—which is also equipped with replaceable segments—to a specific angle using a handle. A protractor mounted on the left side of the bending machine (as viewed from the front) indicates the current bending angle of the sheet metal. A gas cylinder assists in lifting the bending beam.
The bending beam is adjustable in position relative to the fixed beam. This parameter affects the sheet metal bending radius, and its value also depends on the thickness of the sheet being bent.
The bending machine components are manufactured on precision CNC machine tools
