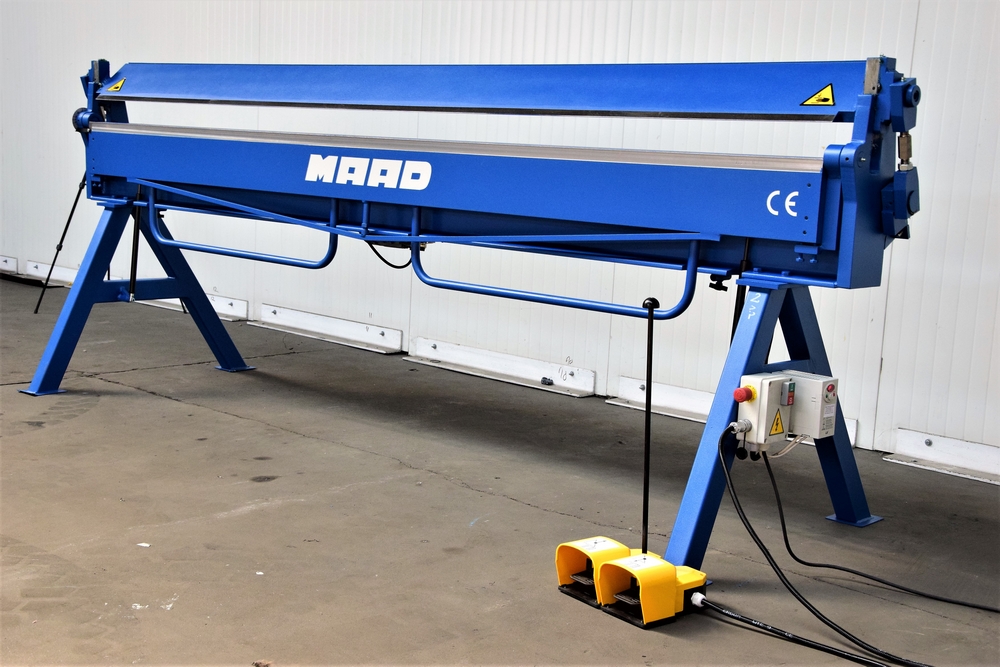

ZGE-3000/1.0 Electric bending machine with top beam drive

INNOVATIVE top press beam drive system.

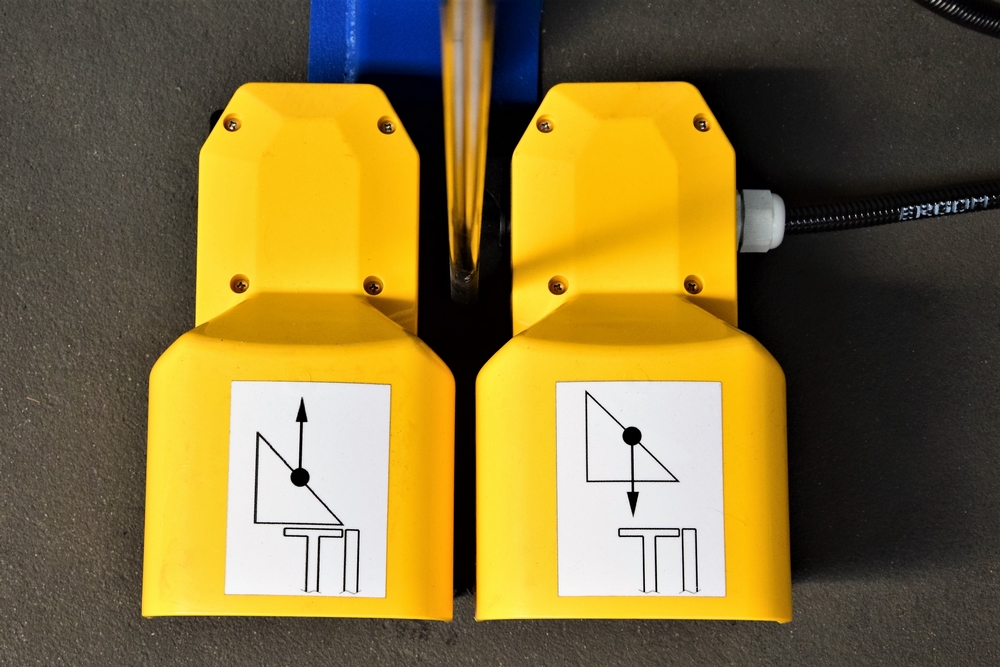

• Semi-automatic control of the press bar by two foot switches,
• top beam speed control,
• CE certified,
• faster work for single operator,
• greater precision in workpiece positioning thanks to hands-free operation,
• higher productivity,
• Improved ergonomics.

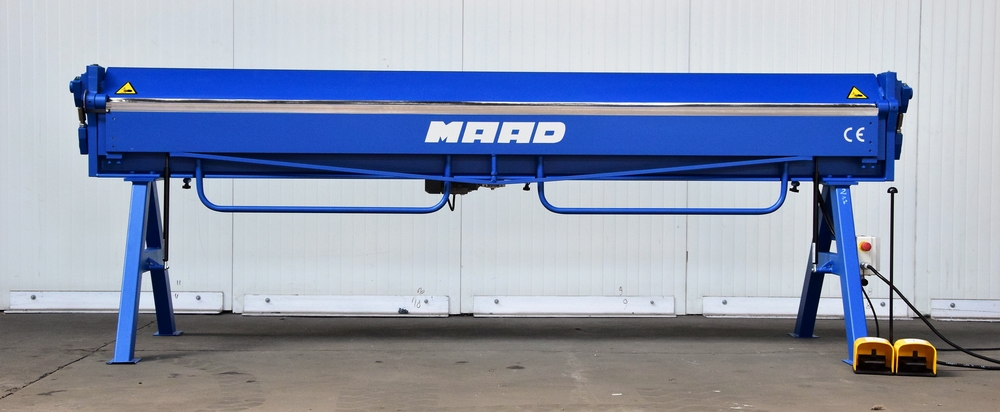

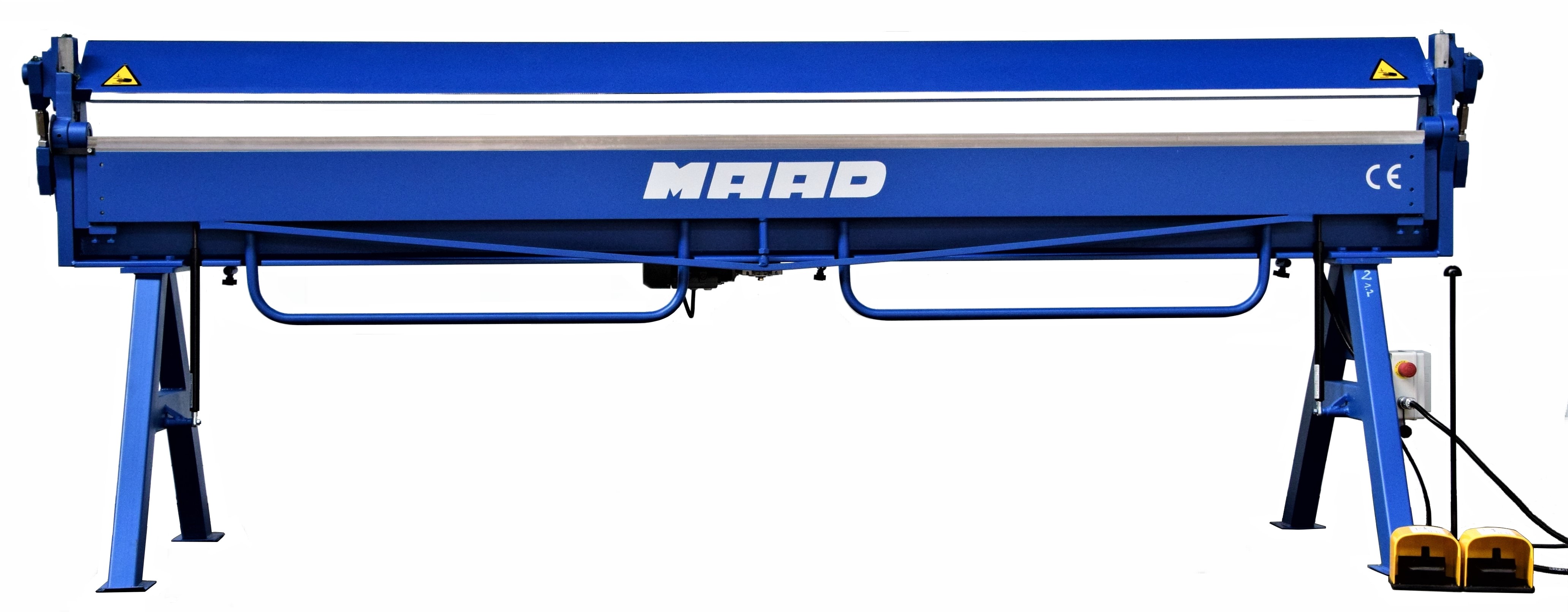

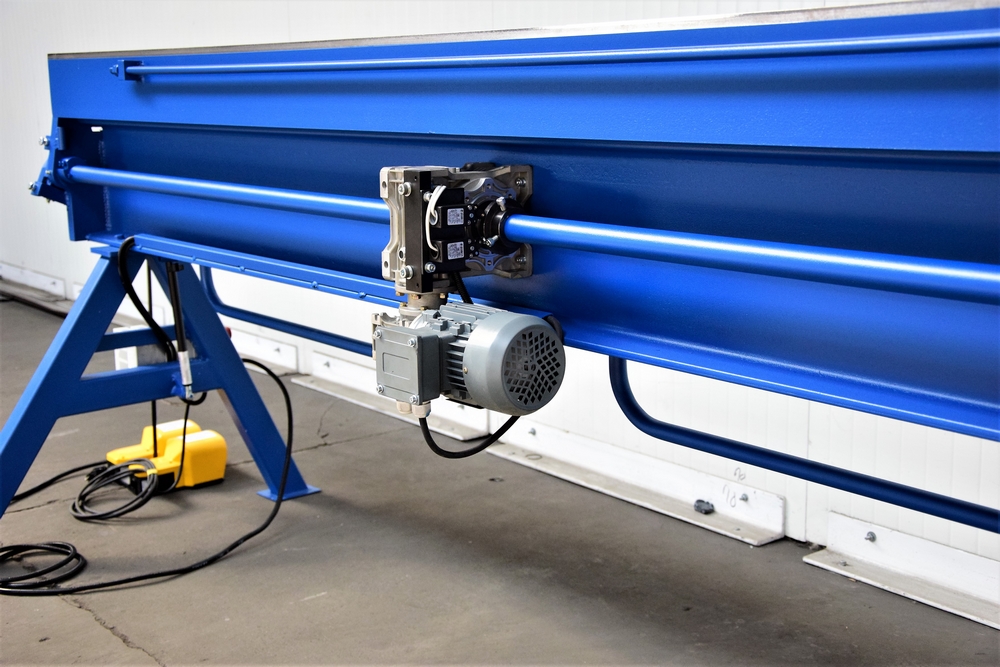

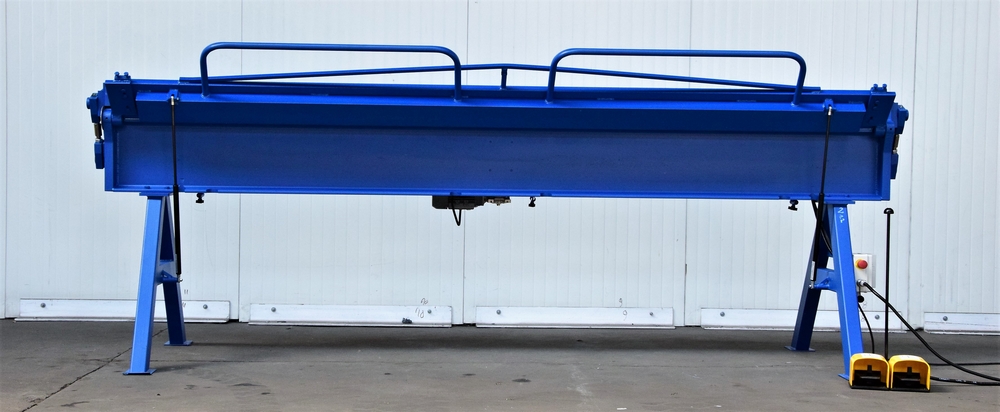

The ZGE-3000/1.0 bending machine is a compact machine, easy to operate. Appropriate cross sections of working beams and massive bodies of machine's sides enable bending of steel sheets with thickness up to 1,0 mm. Functional and reliable in use, it guarantees trouble free operation without deformation of working elements. A foot-operated control for the drive of the upper pressure beam allows the operator to freely manoeuvre the material while sheet metal working. The constructional solution of the pressing beam drive is protected by patent no. 230852.

The main working elements of the bending machine are 3 working beams: fixed, clamping and bending.

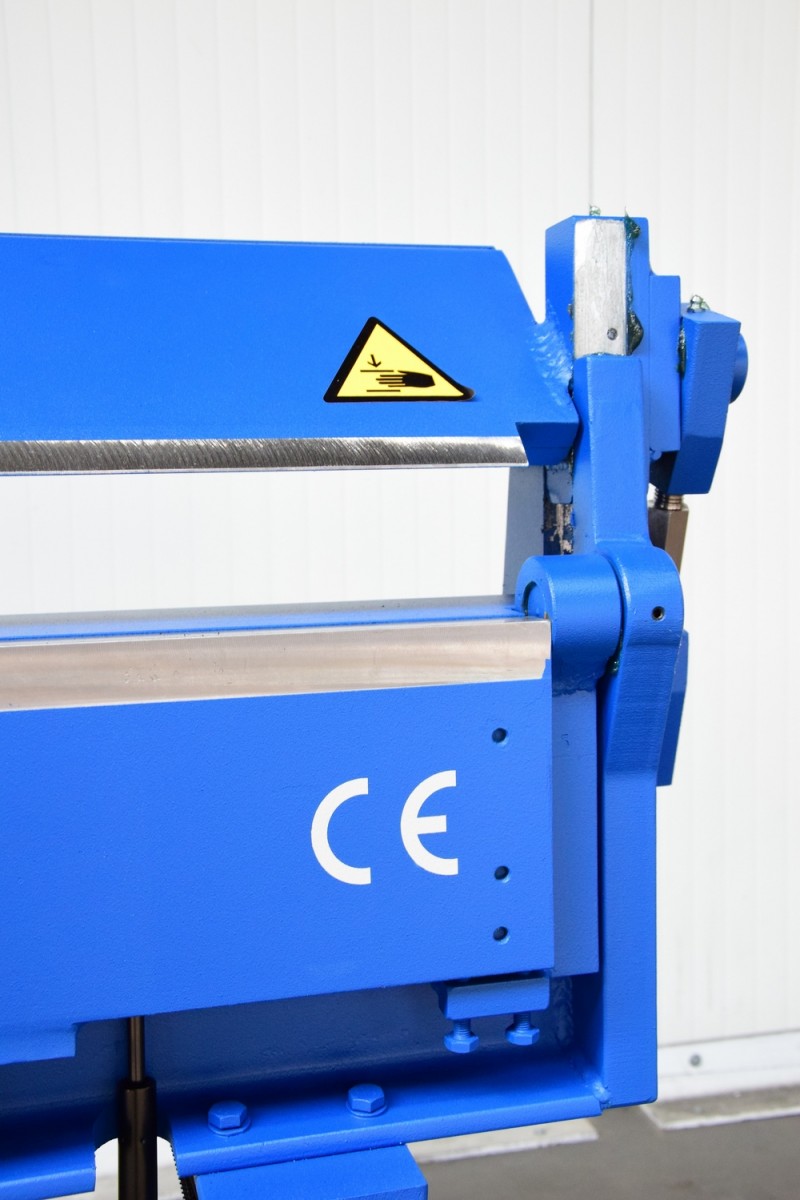

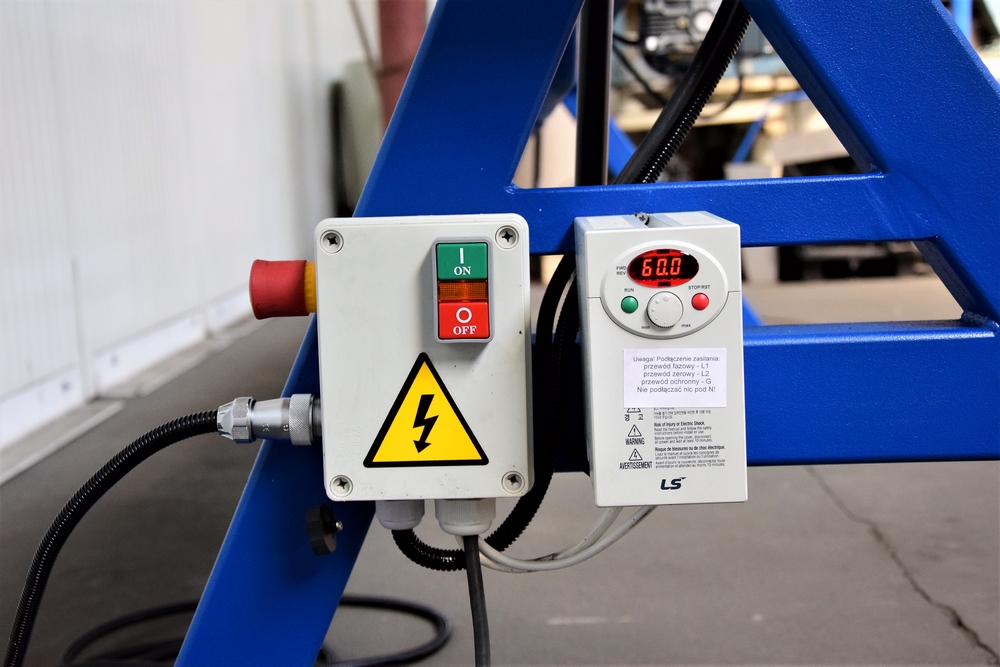

The pressing beam is a movable beam used for fixing the sheet metal in a desired position. It is raised and lowered by means of foot pedals. Thanks to the application of the LG inverter in the control of the bending machine, the speed of lifting and lowering of the upper beam is stepless. The pressing beam is constructed in such a way that its upper part constitutes a guide for the shears.

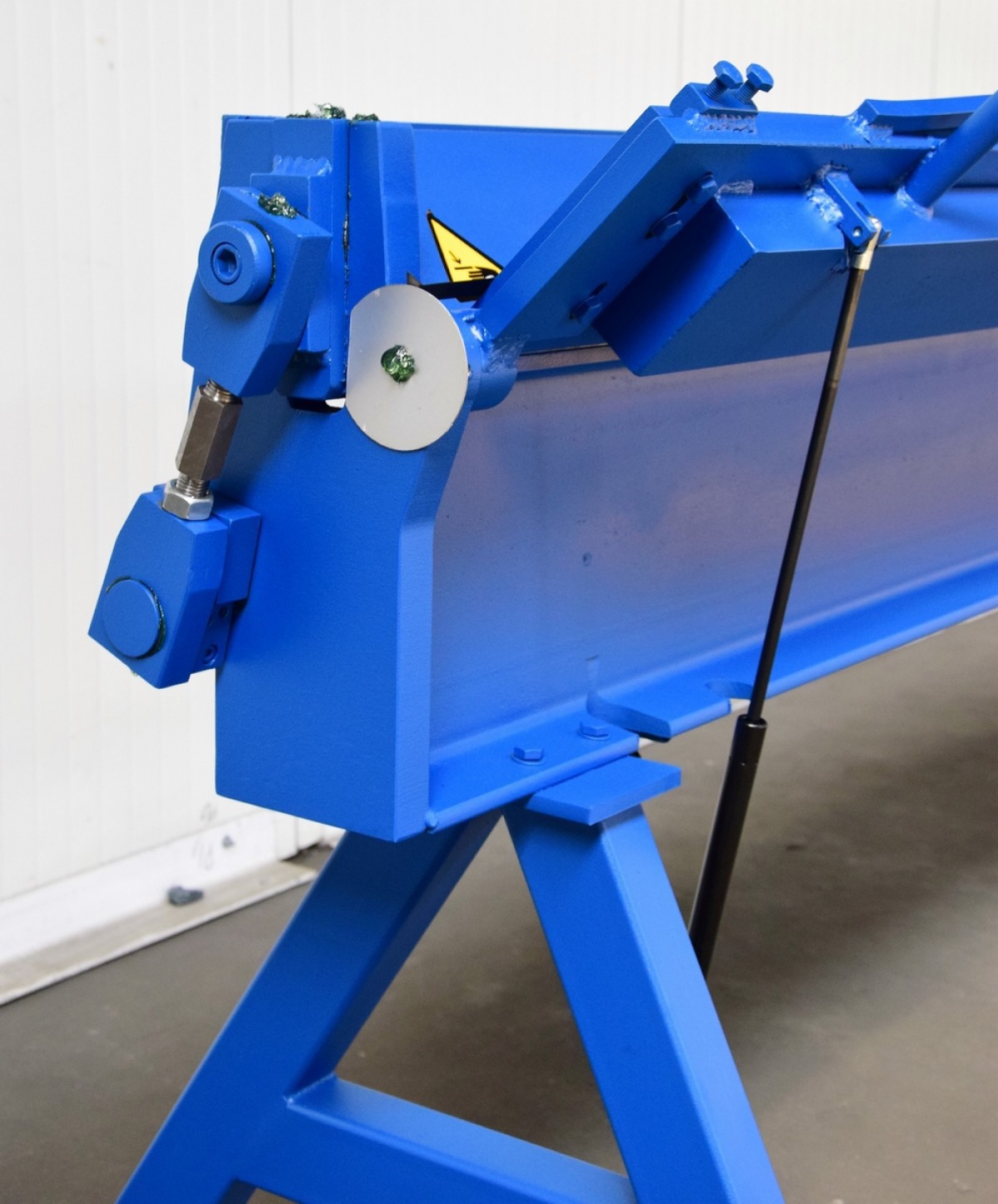

The bending operation is performed by rotating the bending beam by a specified angular value using a handle. A protractor mounted on the left side of the bending machine, when viewed from the front, indicates the current bending angle of the sheet metal.

Bending beam has adjustable position in relation to the fixed beam. This parameter affects the bending radius of the sheet metal and its size also depends on the thickness of the bent sheet metal.

The working beams are equipped with tensioners used to set straightness of the working edges.

The components of the bending machine are manufactured on precision CNC machines.
